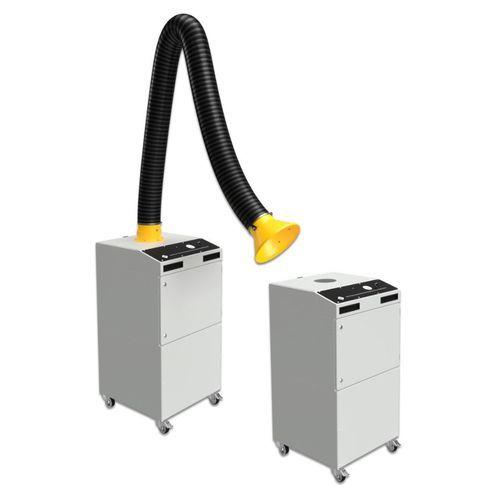

Mobile fume extractor BXWM5

weldingcartridgewith extraction arm

Product overview
Boxair Welding Mobile (Boxair BXWM5) is a mobile filtration device designed to eliminate dust and fumes generated mainly during welding work. The device enables capturing air contamination at the source using Econ or Oskar 160 series extraction arms. The Boxair BXWM5 filter set consists of a metal pre-filter and a replaceable compact main cartridge.

Design improvements
The refreshed Boxair BXWM line offers updated design and modern functionality. Anodized aluminum panel, a pressure gauge for precise monitoring of filter contamination and an IP66 push button enhance operational control and serviceability.

Models tailored to your needs

• EC motor version: energy-efficient, accurate speed control and quiet operation
• Induction motor version: durable solution providing high power and reliable operation in demanding conditions

Application

• occasional welding work where continuous exhaust operation is not required
• small to moderate volumes of dry air pollutants (excluding corrosive or chemically aggressive substances)

Construction

• Anodized panel with pressure gauge, industrial switches and modernized housing with doors with rounded corners
• Metal pre-filter and high-efficiency compact main cartridge
• Two filtration stages with easy access to filter cartridges
• Filter contamination indicator
• Steel welded, powder-coated housing
• Compatible with Econ 160 and Oskar 160 self-supporting standing extraction arms

Recommended standing ECON arms 160 series

• E1620P – 101534
• E1630P – 101536

Boxair BXWM5 parameters
Parameter | Performance Classic Drive | Performance Smart Drive | Comfort Smart Drive
Air flow / impeller | aluminum impeller with induction motor | aluminum impeller with EC motor | composite impeller with EC motor
Air flow (max) | 1400 m³/h | 1400 m³/h | 1300 m³/h
Power supply | 3~400V | 1~220-277V | 1~200-277V
Power | 1.1 kW | 1.1 kW | 0.78 kW
Noise level | 74 dB(A) | 74 dB(A) | 70 dB(A)
Drawing No | 105085-00 | 105085-00 | 105705-00

Technical specifications

• Product family: Boxair BXWM5 (Boxair Welding Mobile)
• Filtration stages: metal pre-filter + replaceable compact main cartridge (two filtration stages)
• Air flow (max): Classic Drive 1400 m³/h, Smart Drive 1400 m³/h, Comfort Smart Drive 1300 m³/h
• Drive / impeller options: aluminum impeller with induction motor; aluminum impeller with EC motor; composite impeller with EC motor
• Power: Classic 1.1 kW, Smart 1.1 kW, Comfort 0.78 kW
• Power supply: Classic 3~400V 50Hz; Smart 1~220-277V 50Hz; Comfort 1~200-277V 50Hz
• Noise level: Classic 74 dB(A), Smart 74 dB(A), Comfort 70 dB(A)
• Construction: steel welded powder-coated housing; doors with rounded corners; anodized aluminum panel; industrial switches; IP66 push button
• Monitoring: pressure gauge for filter contamination indication
• Compatibility: compatible with Econ 160 and Oskar 160 self-supporting standing extraction arms
• Recommended accessory references: E1620P (101534), E1630P (101536)
