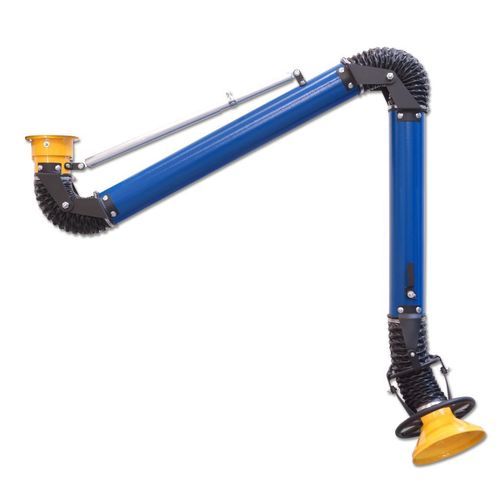

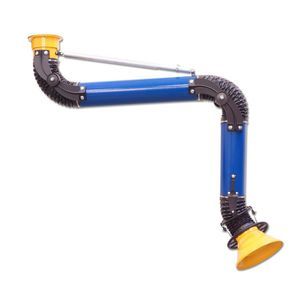

Fixed extraction arm Oskar 100

ceiling-mountedflexibletelescopic

Product overview
Oskar 100 self-supporting fume extraction arm captures pollutants at source in medium-size applications such as painting, grinding, polishing, welding and mechanical processing. The arm contains no internal mechanisms except a built-in air flow damper; all adjustments are external for maintenance without exposure to the polluted airstream. Smooth tubes minimize pressure drop and noise and simplify maintenance for extended service life.

Application

• Laboratories, welding stations, oil mist and grinding
• Standard temperature resistance up to 80°C / 175°F; higher resistance depends on hose type and powder coating; stainless steel arms recommended for very high temperatures
• Recommended airflow range 350–500 m3/h
• Local source capture of non-chemically aggressive airstreams

Construction

• All adjustments accessible from the outside
• Aluminium hood with air diverter and grab handle around the hood
• Aluminium hood joints; middle and swivel steel joints
• Aluminium and steel mounting swivel
• Smooth tubes and black PVC flexible hoses (standard)
• Standard built-in air damper and powder coating
• Fully encapsulated telescoping spring on hanging models

Fume extraction arm Oskar 100 - details:

• Catalogue card: Oskar 100 self-supporting fume extraction arms
• Hanging models: Oskar 1015 – reach 1.5 m (5 ft)
• Hanging models: Oskar 1020 – reach 2 m (6 ft)
• Hanging models: Oskar 1025 – reach 2.5 m (8 ft)
• Standing models: Oskar 1015P – reach 1.5 m (5 ft)
• Standing models: Oskar 1020P – reach 2 m (6 ft)
• Standing models: Oskar 1025P – reach 2.5 m (8 ft)

Technical specifications

• Model: Oskar 100
• Brand: Oskar Air Products
• Product type: self-supporting fume extraction arm
• Mounting options: hanging and standing (self-supporting) models
• Available reaches: 1.5 m (5 ft), 2 m (6 ft), 2.5 m (8 ft)
• Internal mechanism: none except air flow damper
• Adjustments: all accessible on the outside
• Airflow recommendation: 350–500 m3/h
• Temperature resistance: standard hose up to 80°C / 175°F; higher resistance depends on hose and coating; stainless steel recommended for very high temperatures
• Materials: aluminium hood and joints; steel swivel and middle joints; aluminium and steel mounting swivel; black PVC flexible hoses (standard)
• Features: aluminium hood with air diverter, grab handle, smooth tubes for low pressure drop and noise, fully encapsulated telescoping spring on hanging models, standard built-in air damper, powder coating
• Intended use: local source capture of non-chemically aggressive airstreams
