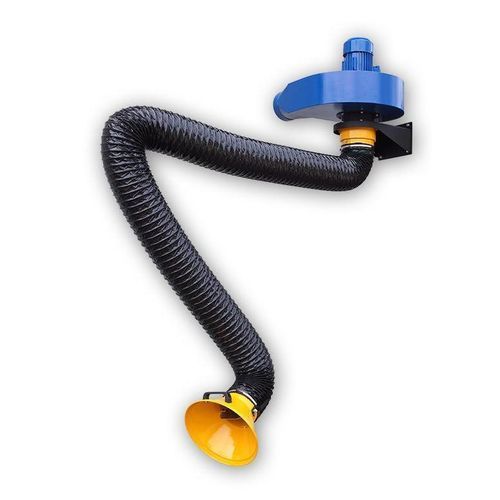

Mobile extraction arm Econ 160

bench-topceiling-mountedwall-mounted

Product description
Econ 160 flexible hose extraction arm is designed for local air pollution control in less demanding applications. The arm is manufactured from a black PVC flexible hose with an internal support mechanism incorporating a counter-support spring and friction-disc joints. Econ 160 is a cost-effective solution for capturing fumes and light dust in workshop environments. Two installation variants are available: hanging (wall or overhead) and standing (bench/table or mobile filter units).

Typical application

• Welding, light dusts (low usage)
• Standard temperature resistance up to 80°C
• Recommended airflow: 800–1200 m³/h
• Local capture of fumes and dust; not suitable for chemically aggressive gases or vapours

Standard construction

• Aluminium hood with plastic grab handle
• Integrated air damper in the hood
• Black PVC flexible hose (temperature resistance up to 80°C)

Details

• Catalogue card available for Econ 160 flexible hose extraction arm
• Hanging and standing variants
• Available reach variants: ECON 1620 (reach 2 m / 7 ft) and ECON 1630 (reach 3 m / 10 ft)
• Also available: ECON 1620P and ECON 1630P variants

Technical specifications

• Model name: Econ 160
• Application: local air pollution capture for less demanding applications (e.g., welding, light dust)
• Construction: aluminium hood, plastic grab handle, built-in air damper, black PVC flexible hose
• Internal support: support mechanism with counter-support spring and friction-disc joints
• Temperature resistance: up to 80°C
• Recommended airflow: 800–1200 m³/h
• Installation variants: hanging (wall/overhead) and standing (bench/table/mobile filter)
• Exclusions: not intended for chemically aggressive fumes and gases
