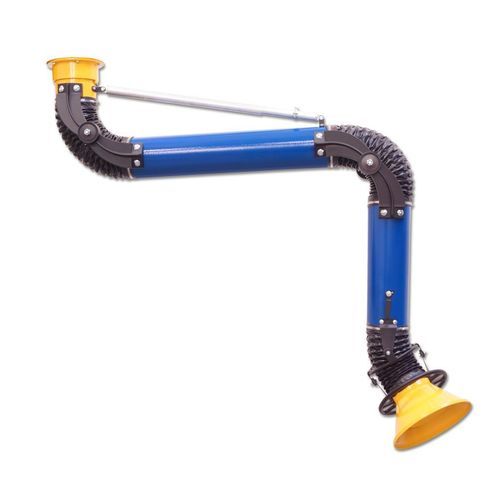

Fixed extraction arm Oskar 160

ceiling-mountedflexiblearticulated

Product overview
Oskar 160 is a self-supporting fume extraction arm designed for source capture of welding smoke, grinding and polishing dust, oil mist and similar airborne pollutants in industrial environments. The arm uses aluminium die-cast components, smooth tubes and aluminium external joints to minimise pressure drop and noise, and to simplify maintenance. All adjustments are external; the built-in airflow damper is the only internal element, so no contact with the polluted air stream or duct interior is required for regulation.

Typical applications

• welding
• grinding
• oil mist capture
• cutting
• polishing
• painting
• packaging
• standard temperature resistance up to 80°C
• recommended airflow range 1000–1400 m3/h
• for non-explosive and non-aggressive air pollution

Standard construction

• all adjustments external
• aluminium hood with air diverter
• grab handle around the hood
• aluminium hood joints
• cast aluminium middle and swivel joints
• aluminium and steel mounting swivel
• smooth tubes
• standard built-in air damper
• black PVC flexible hoses (temperature resistance up to 80°C)
• standard powder coating

Available models / versions

• Oskar 1620 hanging fume extraction arm – reach 2 m / 6 ft
• Oskar 1630 hanging fume extraction arm – reach 3 m / 10 ft
• Oskar 1640 hanging fume extraction arm – reach 4 m / 14 ft
• Oskar 1620P standing fume extraction arm – reach 2 m / 6 ft
• Oskar 1630P standing fume extraction arm – reach 3 m / 10 ft
• Oskar 1640P standing fume extraction arm – reach 4 m / 14 ft
• Oskar 160 catalogue card and technical brochures available

Technical specifications

• Recommended airflow: 1000–1400 m3/h
• Flexible hose temperature resistance: up to 80°C (175°F)
• Construction materials: aluminium hood and joints, cast aluminium middle and swivel joints, aluminium and steel mounting swivel
• Design: smooth tubes and aluminium external joints for low pressure drop and low noise
• Adjustments: all external (no need to access polluted air stream or internal ducting)
• Built-in air damper (standard)
• Hood: aluminium with air diverter and grab handle
• Hoses: black PVC (standard)
• Finish: standard powder coating
• Intended for: non-explosive and non-aggressive air pollution capture
• Available reaches: 2 m, 3 m, 4 m (hanging and standing variants)
• For very high temperature applications, stainless steel fume arms are recommended
