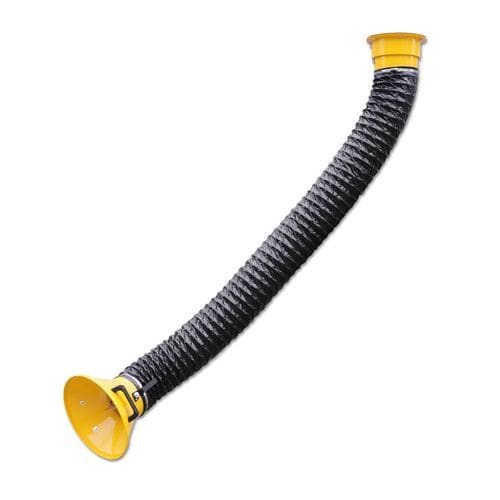

Portable extraction arm TE-1615
telescopicdustsuction

Portable extraction arm - TE-1615 - MENEGON - telescopic / dust / suction
Portable extraction arm - TE-1615 - MENEGON - telescopic / dust / suction
Portable extraction arm - TE-1615 - MENEGON - telescopic / dust / suction - image - 2
Portable extraction arm - TE-1615 - MENEGON - telescopic / dust / suction - image - 3
Portable extraction arm - TE-1615 - MENEGON - telescopic / dust / suction - image - 4
Portable extraction arm - TE-1615 - MENEGON - telescopic / dust / suction - image - 5
Portable extraction arm - TE-1615 - MENEGON - telescopic / dust / suction - image - 6
Portable extraction arm - TE-1615 - MENEGON - telescopic / dust / suction - image - 7
Add to favorites
Compare this product
Go to the MENEGON website for more information

Characteristics

Mobility
portable
Type
telescopic
Applications
dust, suction, welding fume, for soldering fumes
Other characteristics
with hood
Domain
for industrial applications, for welding applications
Length

Min.: 0.9 m
(2'11" )

Max.: 1.5 m
(4'11" )

Diameter

160 mm
(6.3 in)

Description

Product overview
The Tele-Econ 160 telescopic hose extraction arm (model TE-1615) is engineered for less demanding, intermittent fume and dust extraction tasks. The device combines a flexible PVC hose mounted on a telescopic frame with internal regulating/friction elements to maintain position and control airflow. It is intended for localized, ad hoc extraction in workshops and small industrial stations.

Application
  • Welding
  • Soldering
  • Grinding of steel and stainless steel components
  • Cutting
  • Polishing

Construction
  • Black PVC elastic hose on a telescopic frame
  • Operable in any telescope position with internal friction/regulation
  • Rotating swivel for extended working range
  • Safety stop on swivel socket sleeve to define a restricted (dead) zone
  • Painted aluminium inlet hood with built-in air damper
  • Grab handles on the hood for positioning

TE-1615 telescopic extraction arm parameters
Model: TE-1615
Duct diameter: 160 mm
Recommended airflow: 1000 m³/h
Reach: 0.9 - 1.5 m
Hood inlet: 315 mm
Weight: 16 kg
Drawing No: 105918

Technical specifications
  • Model: TE-1615
  • Duct diameter: 160 mm
  • Recommended airflow: 1000 m³/h
  • Reach: 0.9 - 1.5 m
  • Hood inlet: 315 mm
  • Weight: 16 kg
  • Drawing No: 105918
