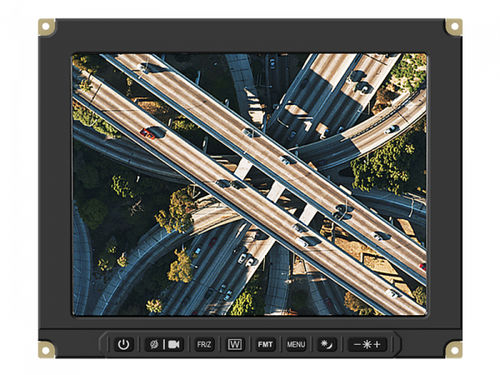

LCD display AVM4102 1024 x 76810.4"VGA
Add to favorites
Compare this product
Characteristics
- Type
- LCD
- Format
- 1024 x 768
- Screen size
- 10.4"
- Other characteristics
- VGA
- Width
10 in
- Height
8.13 in
Description
The AVM4102 boasts a 10.4″, bright display and XGA resolution for crystal clear imagery in the harshest conditions.
Specifications
Model AVM4102
Depth (in)
2.94
Weight (lb)
5.3
Aspect Ratio
4:3
Dimming
28VDC/5VDC/5VAC (Optional)
Screen Modes
PbP, PiP, SS
Touchscreen
(Option) Resistive
Data I/O
Discrete 2 in (Optional)
Video I/O
1 HD (Optional), 2 VGA, 3 SD
NVIS
NVIS-B (Optional)
Configurable Features
Heater, NVIS, Remote Dimming, Touchscreen, Triax Connectors, Video Out
Storage Temperature Range
-55˚C to +85°C
Operating Temperature Range
-40°C to +71°C
Heater Glass
Consult Factory (Option)
Input Voltage
28 VDC
Qualifications
MIL-STD-810
