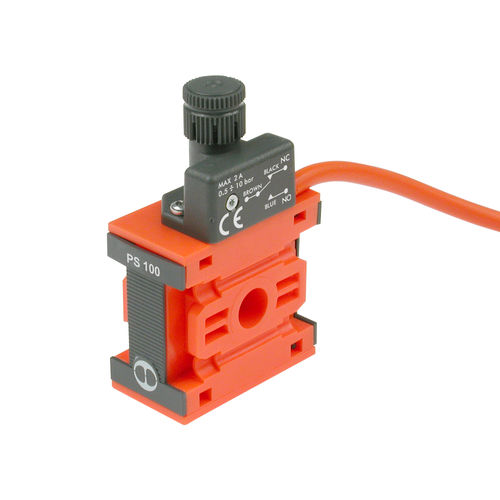

Mechanical pressure switch PS series
NCNOthreaded

mechanical pressure switch
mechanical pressure switch
Add to favorites
Compare this product


Characteristics

Technology
mechanical
Contact type
NC, NO
Mounting
threaded
Fluid
for air
Protection level
IP65
Other characteristics
adjustable, miniature, modular
Pressure range

Max.: 15 bar
(217.56 psi)

Min.: 0 bar
(0 psi)

Switching power: current

2 A

Process temperature

Max.: 50 °C
(122 °F)

Min.: -10 °C
(14 °F)

Description

Skillair® pressure switches feature a high degree of miniaturisation and a modern attractive design. As they are extremely modular, the Skillair® series can be installed facing up or down. They come ready assembled with a 2-metre cable or an M8 connector with a 300-mm cable. The contact is the switching type, which means it can be normally open or normally closed. It can be regulated via a knurled push-lock handle. On the side opposite the regulation handle is a threaded air inlet port that can be used by removing the threaded plug. Quantity per package: 0 Minimum order quantity: 0 Unit of measure: items Adjustable pressure interval (bar): 0.5 ÷ 10 Contacts: Normally-Open (NO) and Normally-Closed (NC) Fluid: Filtered air without lubrication; lubrication, if used, must be continuos Functional denomination: NO/NC Pressure switch Hysteresis (not adjustable) (bar): from 0.4 to 0.8 (See diaphgram) Maximum current (A): 2 Maximum voltage (V): 250 Number of switchings: 5'000'000 Number of wires and cross section: 3 x 0.5 mmq Operating Temp. range at: 1 MPa;10 Bar;145 psi (°C): 50 Outside diameter of cable (mm). 4,9 Protection degree: IP 65 Product series: SKILLAIR series
