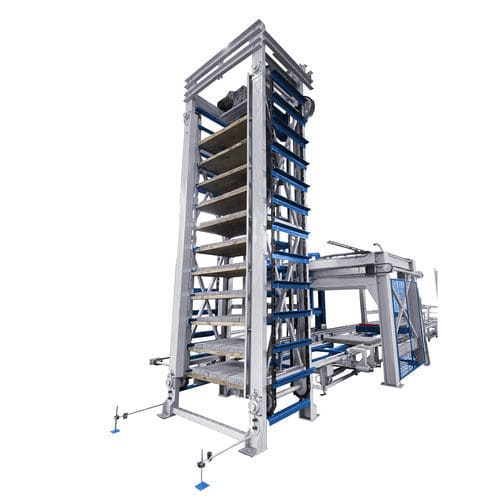

Automatic elevator PP-15/400

electricfor the construction industryfor building materials

PP-15/400 Elevator for lifting production boards with fresh concrete products
Elevator handling one production board – pallet on each level)
 PP-15/400 Lowerator for lowering the production boards onto conveyor for transfer production boards to automatic cubing station ASP-1000
Lowerator handling one production board – pallet on each level The frame consists of a heavy profile steel structure. Attached one electric gear motors with built-in brakes.
Double chains power the lift chains.
The lift chains are a high-performance bushing chain running in guides. Attached are the carrying angles, which are designed to automatically center the boards. Proximity switches and electric eyes control the elevator. Maintenance platform, as well as safety gates.
 METALIKA designed PP-15/400 elevators to be suitable for concrete block production line in configuration with Finger Car system only. Distance between levels: 400mm Control: Automatic
Drive: Electro Maximum dimension board: 1400x900mm Maximum number of pallets: 15
