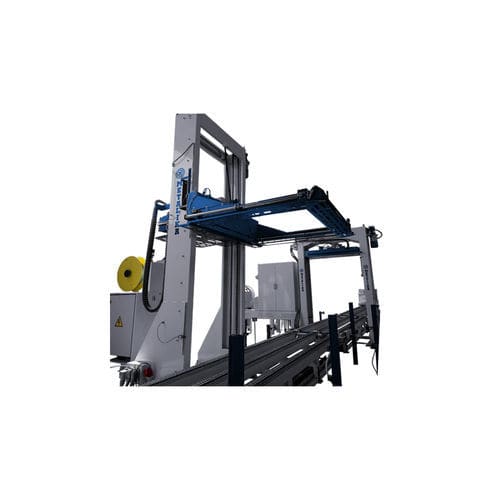

Strapping line

Fully automatic strapping machine, to perform horizontal or vertical pallet strapping with packed concrete products. Main features Main steel made frame painted with anti-corrosive coating and epoxy paint in several layers Strapping heads installed on a steel made structure driven by a geared brake motor Strapping Head suitable to use PP/PET strapping band Gear-motor for strap thrown and recovery controlled by inverter Pneumatic device to approach the strapping head to the product Strapping tension adjustable from 5 to 350 kg. Strap sealing system by friction Easy strapping band insertion into the strapping heads Photocell for automatic pallet height detection with packed concrete products Upward / downward speed of the strapping head controlled by inverter Horizontal strapping guides with flaps Pneumatic device for strap positioning on the product Coil dispensers to recover the excess strapping band during the recovery cycle Electronic control of strapping band end Fully customizable programs and strapping tension values Program for 1 or more horizontal straps Program for the exclusion of the strapping cycle Operating panel (HMI) complete with digital display keyboard to control Auto diagnostic program and visualization of the alarms, selection of manual operations, timers of the strapping cycle The machine is complete with all the useful devices to perform a fully automatic working cycle.
