Cobot CI-03/020

6-axispalletizingmachining

6-Axis Collaborative Robots - METALSELF Series
Flexibility and safety for industrial automation. Plug & Play solutions for handling, assembly, and welding.

ATTENTION - EXCLUSIVE PROMOTION AND BASE PRICE:
The starting price indicated refers exclusively to the base product without accessories (CI-03 model robotic arm equipped with a control cabinet and Teach Pendant).
Take advantage of our Year-End Promotion: A special and highly advantageous promotional campaign is currently underway. If you confirm your order by December 31st, you will gain access to significant discounts on the purchase of the new system. It is the ideal time to automate your production. Contact us now to lock in the promotional price and receive a customized offer!

System Overview
Metalself Srl presents its range of 6-degree-of-freedom collaborative robots (Cobots). This product is designed to break down the barriers of industrial automation.
Thanks to a compact design and advanced safety features compliant with international standards (EN ISO 13849-1 PL d), our cobots can operate in shared workspaces with human personnel without the need for bulky perimeter fences. The intuitive control interface makes automation accessible to companies of all sizes.

Main Applications
The operating software includes pre-configured templates that make the Metalself range extremely versatile for a wide variety of industrial tasks:

Pick & Place and Machine Tending: Loading and unloading of machine tools (CNC), presses, and assembly lines.

Palletizing and Depalletizing: Rapid management routines for grids and layers of materials.

Assembly and Quality Control: Seamless integration with vision systems for optical inspections, screwdriving, and precision assembly.

Welding, Gluing, and Sealing: Precise trajectory control and direct interfacing with dispensers and welding machines via dedicated I/Os.

Surface Finishing: Consistent sanding, polishing, and deburring operations.

Programming and Intuitive Functions
Programming the robot is extremely simple. The software utilizes a zero-gravity manual "Drag-to-Teach" mode. The operator physically guides the robotic arm by hand to record trajectories, eliminating the time needed for complex programming.
The system features a graphical interface on a color touchscreen Teach Pendant. Connectivity includes full compatibility with industrial communication protocols for seamless integration with PLCs and factory systems.

Technical Specifications of the Range

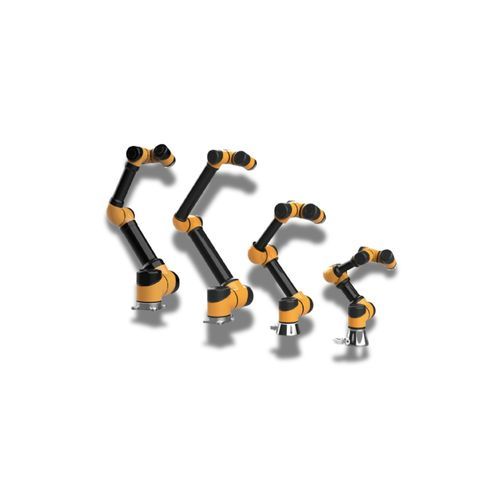

The Metalself range offers five scalable models to adapt to any payload and reach requirement:

Payload Capacity: From 3 kg up to 20 kg.

Reach: From 600 mm to 1650 mm.

Repeatability and Precision: From ±0.02 mm to ±0.05 mm, depending on the model.

Maximum Joint Speed: Up to 180 °/s for each axis.

Protection Rating: IP54, built from aluminum alloy and ABS plastic.

Control Cabinet I/O Interfaces: 16 digital inputs, 16 digital outputs, 4 analog inputs, 4 analog outputs.

Tool Flange I/O Interfaces: Direct M12 connection for actuators and sensors on the End-Effector.

Certifications, Training, and Safety
Metalself Srl guarantees a turnkey package. The machine is supplied complete with all necessary certifications and manuals.
The system holds standard CE marking and is fully compliant with European Directives and collaborative safety standards. Worldwide certification delivery is also available upon request.
Our supply includes a training program on how to operate the machinery to ensure the total safety of the operators.
The standard preparation time for shipping is 40-50 working days. Contact us for any further information.
