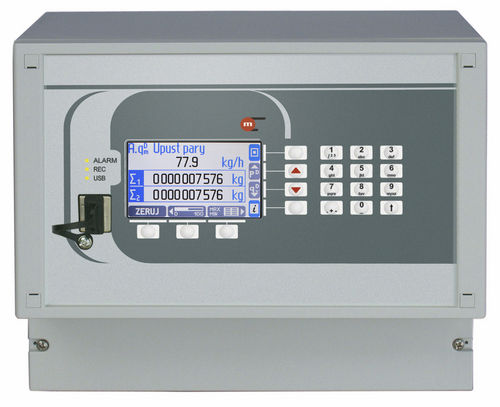

Liquids and gase flow computer FP-3011N

Flow computer for calculating compensated flow and thermal energy of steam, water and other liquid media and compensated flow of process gases with electronically registered results. Wall-mounted case, power supply 230 V or 24 V. Simultaneous consumption calculations in up to two different measurement systems (A, B, C) for separate process lines. The computer enables: compensated flow and energy measurement of unsaturated or saturated vapour and water according to IAPWS-IF97 guidelines, compensated flow and energy measurement of other liquids, calculations are made within a range of tabular values entered by the user, compensated flow measurement of process gases. The computers can interact with the following types of flowmeters: mass flowmeter, volumetric flowmeter, differential pressure flowmeter with approximation using root characteristic or according to an iterative algorithm, compliant with PN-EN ISO 5167 (only for water and steam). The device has ten measurement inputs: 2 x RTD/I, two inputs adapted for connection of resistance temperature sensors (Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000) and transducers with a 0/4‑20mA current output, 1 x I, one input for interaction with 0/4‑20mA transducers only, 2 x I/PULS, two inputs intended for connection of transducers with a 0/4‑20mA current output or with a pulse output (range 0.001Hz … 10kHz) 4 semiconducting output relays: alarm and control functions, operation in pulse output mode with fixed pulse weight. 1 or 2 optional 4-20mA analog outputs. Ports: RS485 port: ASCII or MODBUS RTU protocol , Ethernet port: Modbus TCP protocol, Web server.
