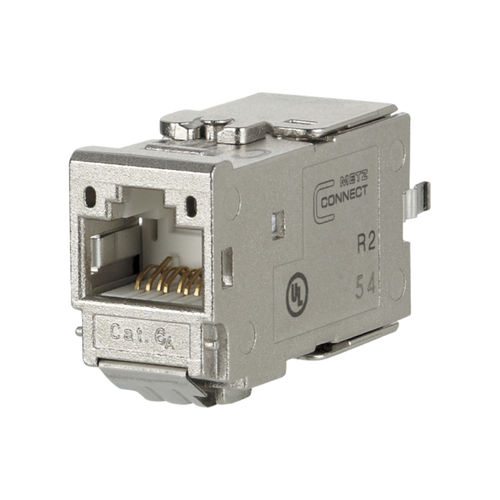

Data connector C6Amodul

RJ45femaledie-cast zinc

・modular Cat.6A termination unit RJ45 ・mounting version: MC module, 180° cable feed ・solid, one-piece and reusable module housing refined with zinc die-casting ・mounting without special tools, strain relief directly snapped on to stuffer cap ・migration to 25G-systems without special tools ・easy to install connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC) ・intelligent cable management in stuffer cap - also suitable for heavily twisted cables ・conductor assignment to T568A and T568B is directly printed on the stuffer cap ・certified to GHMT Cat.6A re-embedded PVP ・Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified ・compliance with class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1 ・tested: component up to 600 MHz, link up to 800 MHz
