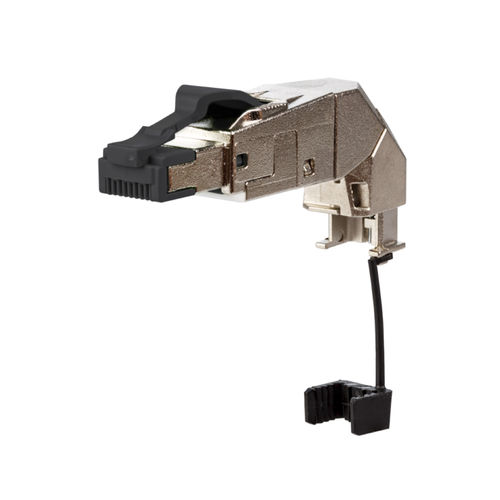

Data connector C6A RJ45

RJ45die-cast zincfor industrial applications

・Cat.6A class EA RJ45 plug to be assembled in the field ・fully shielded and multi-port capable ・variable (360°) cable feed, freely selectable ・easy assembly - connection without special tools ・wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm ・wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.409 to 0.64 mm ・transmission characteristics Cat.6A according to ISO/IEC 11801 ・compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1 ・degree of protection IP20 ・for cable jacket from 5.50 to 9.50 mm ・zinc die-cast housing for industrial use ・strain relief by latching clip directly on the stuffer cap ・protected locking hook ・reconnectable
