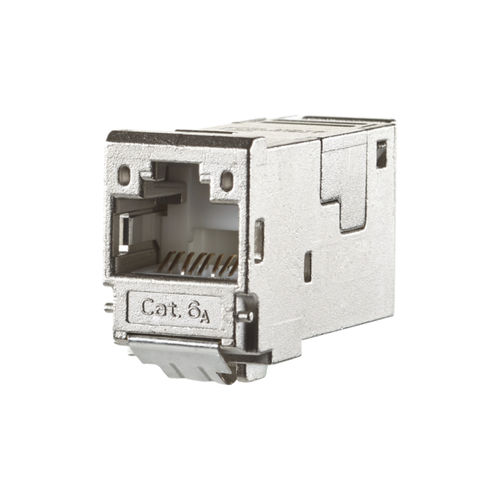

Data connector E-DAT modul

RJ45femaledie-cast zinc

・modular termination unit Cat.6A, RJ45 ・Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified ・compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1 ・tested: Link up to 500 MHz ・easy to install connection of 2 to 4 pair data lines ・AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC) ・marking of conductor assignment to T568A and T568B ・easy and fast insertion of wire pairs in E-DAT modul stuffer cap ・module housing made of refined zinc die-casting ・mounting without special tools ・strain relief with cable tie at the module ・dust cover amounting option ・mounting version: MC Modul ・cable feed 180° ・delivery in a 10-piece set, available separately
