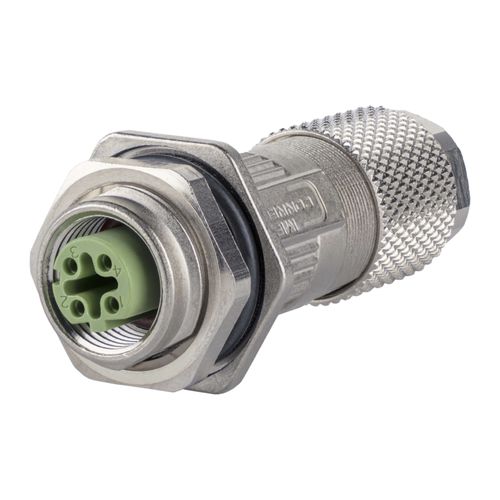

Data connector MMF891A115-0001M12 D-codeddie-cast zincrailway
Add to favorites
Compare this product
Characteristics
- Type
- data
- Size
- M12 D-coded
- Material
- die-cast zinc
- Domain
- railway
- Protection class
- IP67
Description
・4-pole jack for field assembly Cat.5
・M12 connector following to DIN EN 61076-2-101:2012 with flange
・suitable for 100 MBit Fast Ethernet as per IEEE 802.3an
・AWG 26/1 to 22/1, AWG 26/7 to 22/7 can be connected
・solid copper wire diameter 0.41 to 0.64 mm
・stranded copper wire diameter 0.48 to 0.76 mm
・wire diameter with isolation up to 1.6 mm
・cable jacket from 4.0 to 6.0 mm
・jack consists of only two parts
・easy assembly without special tools
・industry-compatible zinc die-cast housing
・suitable for applications in the railway industry according to data sheet
