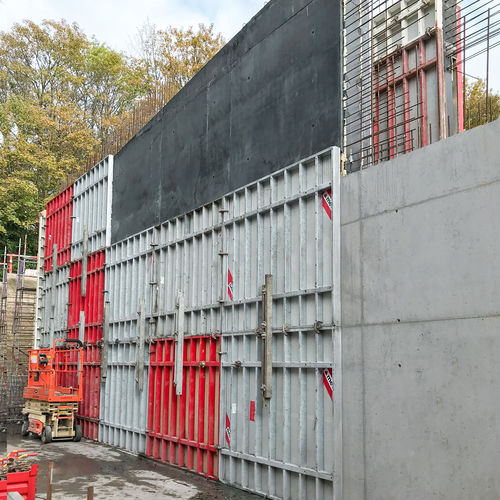

Frame formwork StarTec

lightweightwallsteel

StarTec is a genuine all-rounder. This multi-purpose formwork boasts a long and impeccable track record worldwide and it’s easy to see why. Its universal steel formwork is capable of accommodating fresh concrete pressures of ­60­kN­/m² so it’s prepared for any commercial and residential construction challenge. Robust and universally applicable, StarTec provides you with high efficiency and flexibility because it perfectly complements the compact, lightweight and AluStar formwork as well. Together, StarTec, StarTec XT, and AluStar comprise a product family featuring crane-­independent aluminium and large-format steel panels. The only component needed for their universal application is the assembly lock. Combined use of the two systems allows the ­efficient and flexible deployment of resources to meet all on-site demands. Up to 8.91m² contact area per panel (330 x 270cm) Closed hollow steel frame profile Structurally robust Torsion-proof Hot-dip galvanised to facilitate cleaning and reduce concrete adhesion Smart multifunctional profile Welded-in Dywidag nuts All accessories, such as brackets, push-pull props and alignment rails, are attached with MEVA flange screw Tying for inclined or stepped-level formwork Tie hole with conical steel anchor sleeve, welded in from both sides Intelligent MEVA product design MEVA assembly lock for a structurally continuous connection with only a few hammer blows Bump notches for panel widths of 135cm and more to ­simplify adjustment and alignment with crow bar High-quality alkus all-plastic facing with seven-year warranty Full compatibility with lightweight AluStar​​​​​​​ and StarTec XT featuring three tying methods in one system
