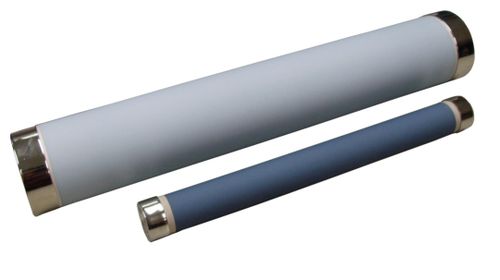

Wire-wound resistor 20 - 500 W, max. 200 kV | DHVRC

high-frequencynon-inductivehigh-voltage

DHVRC series - High Voltage, High Frequency, High Pulse Energy and High Current Power Resistors with resistance range from 1 ohm to 5k ohms. It support 20W ~ 500W requirement for High Voltage with voltage up to 200kV. Application : High Frequency and High Pulse Current capacity applications. Resistance can be made according to customers application need. For a given rated power Resistor, the actual max. pulse voltage is depended on the rated resistance value, pulse width, duty cycle, duration between two adjacent pulses and number of pulses per second / minute. Higher resistor power can be achieved by connecting the resistors in parallel and/or series. Please provide following working conditions : - Resistance value and Resistor Power - AC or DC voltage - For Surge Voltage, please tell the peak to peak voltage range, duty cycle, repetition rate and time between two pulses. There are more details in our product page. http://www.mf-powerresistor.com/High_Voltage_Resistor.htm#DHVRC With your further details, we can send of suggestion and quotation for your consideration.
