Wire-wound resistor ASQ / ASQM / ASZ

low-inductancehousedbraking

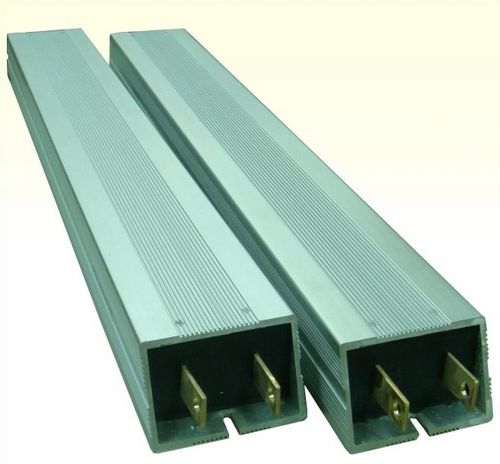

The ASQ, ASQM, ASZ, and ASZA are the braking resistors manufactured by MF Power Resistor Ltd. The external housing made of aluminum protects the internal wire wound resistor from external mechanical force, humidity and dust. The resistors can guarantee long life, and can resist strong vibration. These resistors are efficient in different applications, such as for variable frequency drives, industrial machinery and equipment, snubber circuits and heating resistors. There are different electrical connection to choose from, which are Electrical Lead Wires with or without Ring or Y Terminals, and the Busbar Terminals. The length of electrical lead wire can be made according to customers application need. Furthermore, ASON, ASQMN and ASZN are the versions available for low inductance. The standard resistor power range from 40W to 15kW and can be customized up to 20kW. It can even support built-in Thermal Switch and outdoor IP65 requirement. For more details, please feel free to visit following link http://www.mf-powerresistor.com/alum_pw.htm
