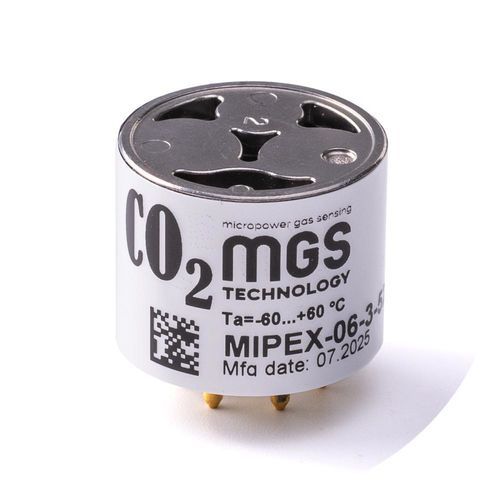

NDIR CO2 sensor MIPEX-06 [CO2]

infrareddigitalUART

Overview
MIPEX-06 [CO2] is an ultra-low power NDIR gas sensor in a 4th series housing with standard-pin configuration. It is designed for continuous automatic measurement of carbon dioxide in hazardous areas and for integration into battery-powered portable detectors and wireless fixed gas analyzers for emission monitoring and safety.

Key benefits

• Ultra-low power consumption enabling extended operation of battery-powered devices.
• High measurement reliability with dual-wavelength NDIR minimizing interference from water vapor and contamination.
• Intrinsically safe design certified to protection level "ia" for hazardous-area deployment.
• Standard 4th series durable plastic housing (Ø20.1 × 16.6 mm) with standard-pin layout for straightforward integration.
• Integrated microcontroller provides linearized, temperature-compensated digital output via UART interface.

Features

• Average power consumption < 0.2 mW.
• Integrated microcontroller — linearized and temperature-compensated digital output via UART.
• Dual-wavelength NDIR technology — reduces interference from water vapor and contamination.
• Intrinsically safe protection level "ia" — compliant with IECEx, ATEX, UL913, CSA.
• Standard 4th series housing — durable plastic, dimensions Ø20.1 × 16.6 mm, standard-pin configuration.
• Long-term stability — design life and measurement stability over 10 years.
• Suitable for continuous automatic CO2 monitoring in hazardous atmospheres and for integration into portable and wireless systems.

Applications

• Battery-powered portable gas detectors.
• Wireless fixed gas analyzers for emission monitoring and safety systems.
• Portable and stationary gas analysis systems operating in hazardous atmospheres.

Technical specifications

• Sensor type: NDIR (non-dispersive infrared), dual-wavelength.
• Target gas: Carbon dioxide (CO2) — MIPEX-06 variant.
• Average power consumption: < 0.2 mW.
• Output: Digital, linearized and temperature-compensated via UART (integrated microcontroller).
• Explosion protection: Intrinsically safe level "ia" — compliance: IECEx, ATEX, UL913, CSA.
• Housing: 4th series durable plastic, dimensions Ø20.1 × 16.6 mm, standard-pin configuration.
• Long-term stability: Designed for measurement stability over 10 years.
• Typical use: Continuous automatic measurement in hazardous environments; integration into portable detectors and wireless systems.
