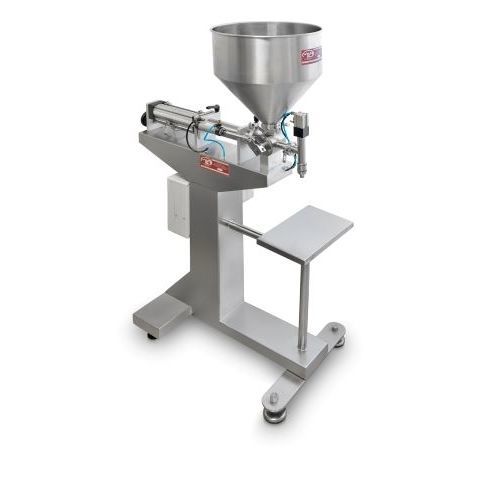

Liquids dosing unit DV-500

for pasty productsvolumetricfor the food industry

PRODUCTION CAPACITY 8-12 cycles/min. overall dimensions 1050 x 500 x 1400 mm. Weight: 60 Kg POWER CONSUMPTION 220V single phase 50 Hz with EEC socket The pneumatically-powered DV500 Volumetric Dosing Machine for nuts and spreads, made of stainless steel with a column for floor-standing installation and adjustable shelf. Ideal for dosing for laboratories or small businesses. Dosing from 100 to 500 ml with graduated rod for the linear adjustment of the piston stroke. Stainless steel truncated conical hopper for loading the product to be dosed. Production rate: 8-12 cycles/min. Manual or automatic production cycle Cleaning cycle to speed up the product dosing format changeover or for cleaning at the end of the work shift.
