Optical color sensor colorSENSOR CFO

rectangularhigh-precisionUSB

Product overview

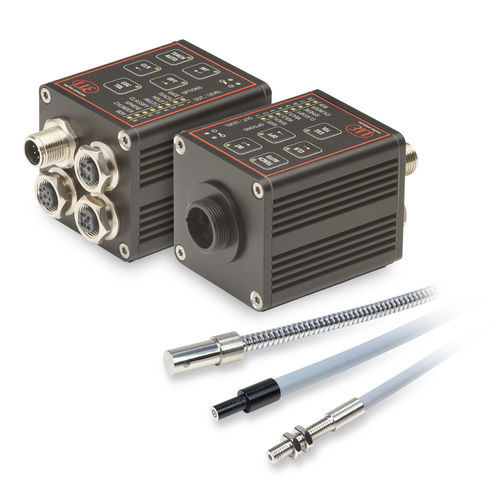

The colorSENSOR CFO is a controller family for precise color detection in industrial measurement tasks. The CFO series connects to CFS fiber‑optic sensors, provides high color accuracy, modern interfaces and an intuitive web‑based setup. Typical uses include color inspection of interior parts (e.g. headrests), packaging inspection and sorting by color of crown caps, closures or labels. The CFO series replaces the LT models.

colorSENSOR CFO100
The CFO100 is a universal True Color controller for relative color measurements in automated environments. It delivers accurate color recognition for dynamic processes with a measuring rate up to 10 kHz.
Characteristics

• Measurement speed: max. 10 kHz
• Measurement output (Lab/XYZ): up to 20 Hz
• Color memory: 256 colors in 6 color groups
• Color distance: ΔE ≤ 1.0
• Repeatability: ΔE ≤ 0.5
• Configuration via web interface

colorSENSOR CFO200
The CFO200 is a high‑precision True Color controller designed for high‑rate color measurements in dynamic production processes. It offers extended color memory, high repeatability and multiple interface options.
Characteristics

• Measurement speed: max. 30 kHz
• Measurement output (Lab/XYZ): up to 20 Hz
• Color memory: 320 colors in 254 color groups
• Color distance: ΔE ≤ 0.6
• Repeatability: ΔE ≤ 0.3
• 8 switching outputs
• Configuration via web interface
• Integration in Profinet, Ethernet/IP or EtherCAT via Modbus + Gateway

colorSENSOR CFO250
The CFO250 is a high‑performance controller for fast measured‑value output and precise color recognition. Internal evaluation and digital switching output operate up to 30 kHz. Unweighted raw data (Lab/XYZ/LCh) can be transmitted directly to PLC or machine systems via UDP, RS232 or USB using a simplified 3‑byte protocol at rates up to 500 Hz.
Characteristics

• Measurement value output (Lab/LCh/XYZ) up to 500 Hz
• Edge or level trigger to control measurement value output
• Measurement speed: max. 30 kHz
• Color memory: 320 colors in 254 color groups
• Color distance: ΔE ≤ 0.6
• Repeatability: ΔE ≤ 0.3
• 8 switching outputs
• Configuration via web interface
• Integration in Profinet, Ethernet/IP or EtherCAT via Modbus + Gateway

Downloads

• Data sheet colorSENSOR CFO100/200 (PDF)
• Data sheet colorSENSOR CFO250 (PDF)
• Setup Guide colorSENSOR CFO (PDF)
• Operating Instructions colorSENSOR CFO (PDF)

Typical applications

• Color inspection on interior parts (e.g. headrests)
• Packaging inspection and quality control
• Sorting by color of crown caps, closures or labels
• Inline monitoring of dynamic production processes

Technical specifications (summary)

• CFO100 — Measurement speed: max. 10 kHz; Measurement output (Lab/XYZ) up to 20 Hz; Color memory: 256 colors (6 groups); Color distance: ΔE ≤ 1.0; Repeatability: ΔE ≤ 0.5; Web interface setup.
• CFO200 — Measurement speed: max. 30 kHz; Measurement output (Lab/XYZ) up to 20 Hz; Color memory: 320 colors (254 groups); Color distance: ΔE ≤ 0.6; Repeatability: ΔE ≤ 0.3; 8 switching outputs; Web interface; Integration via Modbus + Gateway (Profinet/EtherNet‑IP/EtherCAT).
• CFO250 — Measurement speed: max. 30 kHz; Measurement value output (Lab/LCh/XYZ) up to 500 Hz; Edge/level trigger; Color memory: 320 colors (254 groups); Color distance: ΔE ≤ 0.6; Repeatability: ΔE ≤ 0.3; 8 switching outputs; Web interface; Raw data output via UDP/RS232/USB (3‑byte protocol); Integration via Modbus + Gateway.
