Reflective surface inspection system reflectCONTROL

3Dautomatedsurface defect

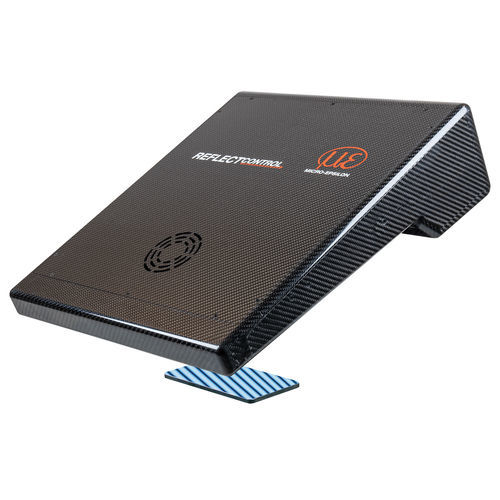

reflectCONTROL is used for surface inspection of shiny objects. The RCS110-245 model with integrated controller is available for stationary measurements or integration into machines. This compact sensor displays a striped pattern which is mirrored by the surface of the measuring object into the sensor cameras. Deviations on the surface will cause deviations from this striped pattern, which are evaluated by software and displayed as a curvature image. GigE Vision enables the transfer of surface images to a wide range of image processing software packages for further analyses. For fully automated surface inspection tasks and defect detection of larger components, the robot-based and complete reflectCONTROL Automation system is available. The sensor attached to the robot is guided to the relevant areas for surface inspection. The comprehensive software package includes all required tools from measurement configuration and evaluation to the display of detected defects superimposed on the CAD model of the component.
