3D vision sensor surfaceCONTROL 3D 2500

for object detectionfor presence detectionfor defect detection

Overview The surfaceCONTROL 3D 2500 3D snapshot sensor performs direct 3D measurements for geometry, shape and surface inspection on diffusely reflecting surfaces. Suitable for automated inline, at-line and metrology-room use, the sensor applies fringe/structured-light projection and transfers captured images to an external controller (SC2500) for fast 3D data generation. Three models cover different measuring fields.

Key features

• Large measuring field for big parts: up to 650 x 495 mm
• High measurement range depth: up to 300 mm
• Acquisition time from 0.5 s
• Repeatability up to 3.0 µm; highest reported precision up to 0.5 µm
• Captured images processed by an external controller into 3D data
• Three model variants for different measuring fields
• Digital interfaces (via controller SC2500): GigE Vision / GenICam
• Fieldbus and network interfaces (via 2D/3D Gateway): Gigabit Ethernet (GigE Vision / GenICam), USB2.0, PROFINET, EtherCAT, EtherNet/IP

Controller and software

• Controller: SC2500 for fast data output via Gigabit Ethernet
• 2D/3D Gateway II for industrial fieldbus connectivity (EtherNet/IP, PROFINET, EtherCAT)
• Software tools: 3DInspect, DefMap3D, InspectionTools for precise 3D measurement and surface inspection
• Compatibility with GigE Vision/GenICam and a comprehensive SDK for customer integration

Applications

• 3D geometry and shape measurement, surface inspection of diffusely reflecting materials
• Inline and at-line quality control, process monitoring and automation
• Non-contact measurement in Stop & Go processes
• Inspection of shape, position and surface characteristics

Technical specifications

• Measurement principle: fringe/structured-light projection (3D snapshot)
• Max. measuring field: up to 650 x 495 mm (model dependent)
• Measurement range depth: up to 300 mm
• Image acquisition time: from 0.5 s
• Repeatability: up to 3.0 µm; highest precision reported up to 0.5 µm
• Controller: SC2500 (fast data output)
• Interfaces: GigE Vision / GenICam (SC2500); GigE Vision / GenICam, USB2.0, PROFINET, EtherCAT, EtherNet/IP (2D/3D Gateway)
• Available in three models to cover different measuring fields

Images

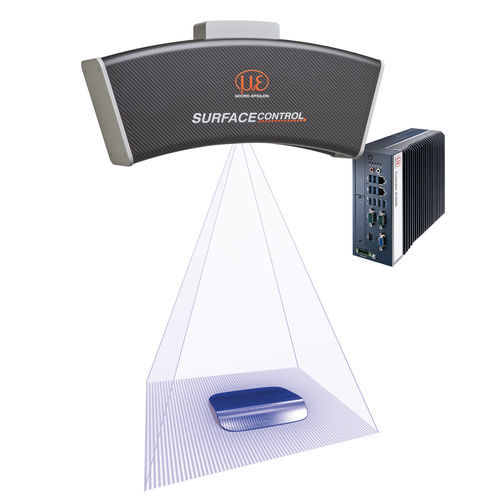

Product images illustrate fringe pattern capture, colorized 3D visualization in software and rapid 3D data output.
