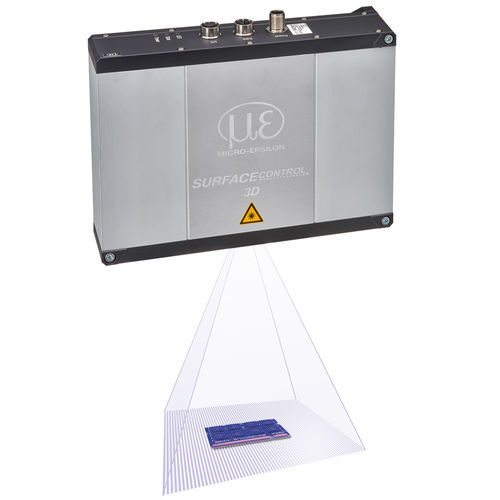

3D vision sensor surfaceCONTROL 3D 3200

for object detectionfor pattern detectionfor optical detection

The high-performance surfaceCONTROL 3D 3200 snapshot sensor is ideally suited for use in industrial applications. It performs automated inline 3D measurements for geometry, shape and surface inspection on diffuse reflecting surfaces. The sensor is characterized by its compact design and high measurement accuracy combined with high data processing speed. With a high Z-axis repeatability of up to 0.6 µm, the sensor is ideal for precise 3D measurement and inspection tasks. Two different measuring ranges cover different measuring fields. In addition to the fast data output, the surfaceCONTROL 3D 3200 also has an IO interface. EtherNet/IP, PROFINET and EtherCAT are available by using the 2D/3D Gateway II. 3D GigE Vision compatibility also allows easy integration into third-party image processing software. The comprehensive SDK for customer software integration rounds off the software package. Application examples: 3D geometry inspection and form detection Inspection of electronic components Automation, production and process monitoring and quality control Non-contact measurement of diffuse reflecting surfaces in the Stop&Go process Form, position and surface inspections
