Sensor evaluation kit eNDIRi²

for IR emitterfor gas detectorssignal converter

Short description
The eNDIRi² evaluation kit is an all-in-one platform for evaluating and prototyping NDIR infrared emitters and detectors. It combines a Main Unit, interface/config boards, matched IR components and analysis software to accelerate measurements, component selection and system development for gas analysis.

Key facts

• Ready to measure: rapid evaluation of IR emitters and detectors
• Complete, coordinated set of hardware, software and IR components
• Free eNDRi² app for data acquisition, analysis and visualization
• Applications: industrial measurement, prototyping, R&D and training
• Quick start: manual and preconfigured settings for CO2 measurements

Fields of application

• Industrial gas analysis: component evaluation, selection and comparative testing
• Prototyping: rapid integration and first functional tests of measurement systems
• Research and development: laboratory experiments and concept validation
• Training and teaching: hands-on demonstration of NDIR measurement principles

Functional scope

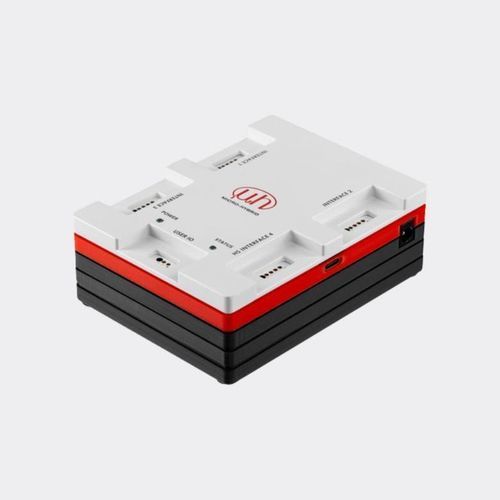

The Main Unit supplies power, performs signal processing and communicates with a PC. It is the base platform for connected emitters, detectors and config boards.

• Interfaces: four sockets for detector and emitter interfaces, including one high-speed capable port
• Power supply: 5 V via USB or 12 V via external power supply (recommended for higher emitter output)
• External control: support for external clock sources from 0.1 Hz to 100 Hz

Interfaces and config boards
Interfaces and config boards adapt signal levels and timing to different IR components. They provide precise control of modulation and conditioning required for reliable measurements and seamless integration with the Main Unit.

eNDRi² app (software)
The eNDRi² app controls connected components, acquires data and provides analysis and visualization tools.

• Component management: automatic detection of detectors and emitters
• Parameter settings: adjustment of gain, offset and modulation frequencies
• Signal visualization: four oscilloscope windows for real-time signal display
• Advanced analysis: filter options (low-pass, high-pass, band-pass) and formula-based calculations
• Data management: project files (*.ndir) and export of measurement data in CSV format
• Update capability: automatic firmware update check and installation

Installation and operation
Step-by-step instructions for hardware setup and software installation are provided in the manual. The kit includes preconfigured settings and a quick-start guide for CO2 tests. Detailed datasheets for individual components are available in the product documentation.

Pricing (bulk prices)
Quantity | Price
starting from 1 | 0,00 €

Characteristics / Technical specifications

• Commercial name: eNDIRi² evaluation kit
• Model designation (manufacturer): NDIR evaluation kit 2.0 | 7206.04-5.51
• Product ID: 1212
• Typical kit contents: Main Unit, interfaces and config boards, IR emitters (compatible with JSIR340/JSIR350 series), thermopile detectors (MTS2SENS, MTS4SENS), pyroelectric detectors (MPS2SENS, MPS4SENS), cuvette (closed gas cell), power supply unit, plug adapters, software (eNDRi² app)
• Interfaces: 4 detector/emitter sockets (one high-speed capable)
• Power options: 5 V via USB or 12 V via external power supply (recommended for higher emitter outputs)
• External clock support: 0.1 Hz to 100 Hz
• Software features: 4 oscilloscope windows, filter options, formula calculations, CSV export, project files (*.ndir), automatic firmware updates
• Typical applications: industrial gas analysis, prototyping, R&D, training and teaching
• Availability: Available
• Price indication: from 0,00 €
