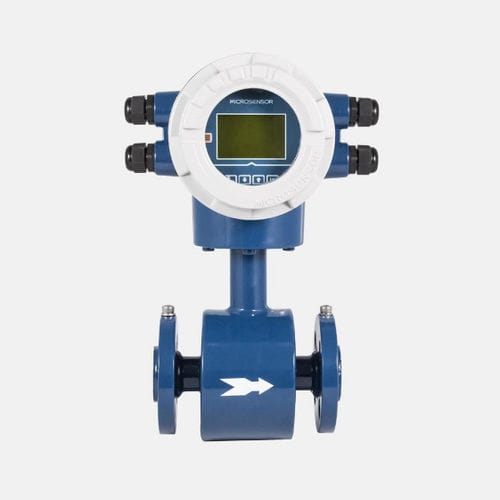

Electromagnetic flowmeter MFE600H

DN25 - 1"DN32 - 1"1/4DN40 - 1"1/2

Measurement of Central Heating, Heating, Air Conditioning and Other Heat in Civil Residential Quarters, Office Buildings and Enterprises and Institutions MFE600H series electromagnetic flowmeter is made by Micro Sensor. Among them, the energy meter has the function of measuring cold quantity and heat quantity, and it comes with 2 Pt1000 as standard, which does not need extra totaliser, and is easy to install, which can reduce the installation cost. The converter adopts low-power single-chip microcomputer to process data, and adopts SMD electronic components and surface mount SMT technology, which has reliable performance, high accuracy, low power consumption and stable zero point. The product is practical and complete, intuitive display, easy to operate. Saves the trouble of on-site installation, operation and maintenance. Features • Multi-electrode structure, highly accurate. With the grounding electrode, it doesn't need grounding ring which saves the cost; • When power off , EEPROM can protect parameter setting and cumulative values; • The electromagnetic energy meter has no mechanical inertia, has a sensitive response, can measure instantaneous pulsating flow, and has good linearity; • Low frequency rectangular wave excitation improves flow stability, low power loss and excellent low flow rate characteristics.
