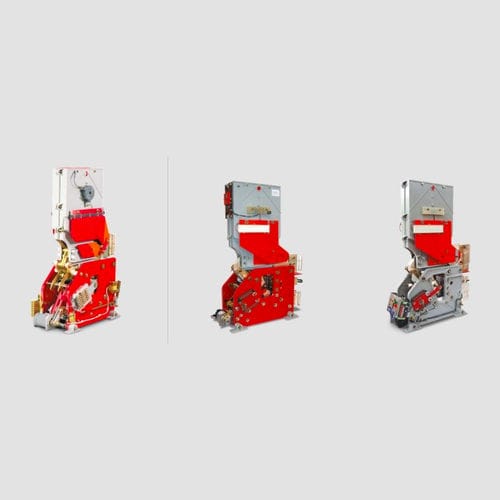

High-speed circuit breaker IR6000F IEC seriesfor railway applicationsfor DC applicationsfixed
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- high-speed
- Applications
- for railway applications, for DC applications
- Other characteristics
- fixed
- Primary current
Max.: 8,000 A
Min.: 3,150 A
- VDC
900 V, 1,800 V, 3,600 V
Description
The IR6000F Line is the right choice where a very powerful solution is required on Fixed Application, for both railway and industry solution according to IEC61992 and IEC60947.
The IR6000F represents the most experienced extra heavy duty line. To be considered for applications requiring high thermal current and high breaking current for systems up to 4 kV.
The IR6000F Line is a range of single pole, air, high speed circuit breakers for DC applications with air breaking, available in three voltage ratings of 900, 1800 and 3600 Vdc and several thermal currents:
3150 A - 4000 A - 5000 A - 6000 A - 8000 A
IR6000F Series includes:
IR6000FC, Vertical mounting, Holding Coil version
IR6000FP, Vertical mounting, Permanent Magnet version
