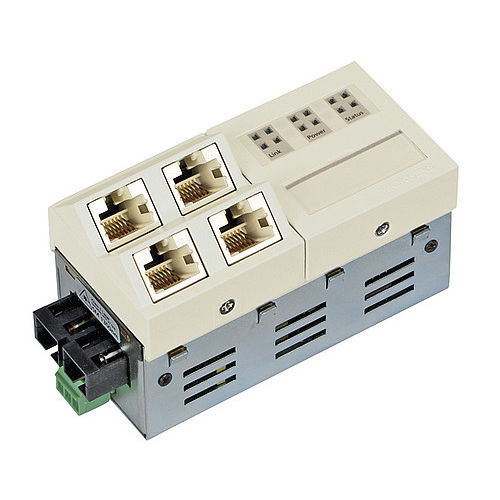

Gigabit Ethernet Micro Switch 5 Port PoE
full Gigabit performance on all ports
4x 10/100/1000Base-T ports with PoE, 1x 1000Base-SX/LX uplink
Integrated management agent, SNMP/web-bases/Telnet/Device Manager
Port-Security (Authentication according to BSI, IEEE 802.1x, etc.)
Power-over-Ethernet according to IEEE 802.3af on all 4 TP ports
VLAN and data prioritisation (QoS)
Fast and tool-less installation due to snap-in design
The new generation now supports complete gigabit performance on all connections. The central switch is connected via an integrated 1000Base X fiber optic connection.
The complete Power-over-Ethernet (PoE) functionality has been designed in accordance with IEEE Std. 802.3af and is supported of all four RJ-45 ports (10/100/1000Base-T). Intelligent power management monitors the current power consumption of the end devices connected.
The switch is generally equipped with integrated network management and supports all management standards from Telnet to SNMP and web browser. Furthermore, the switch has at its disposal features for data prioritisation, VLANs and authentication in accordance with IEEE Std. 802.1X.
