Planetary gearbox PLE 40
coaxial10 - 20 Nm5 - 10 Nm

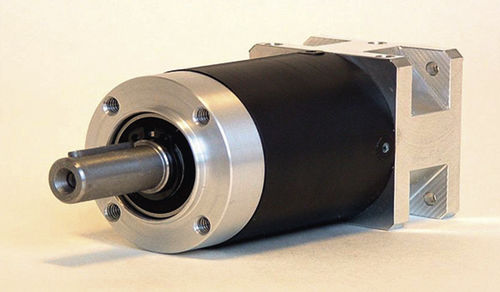

Planetary gearbox - PLE 40 - MICROSTEP GmbH - coaxial / 10 - 20 Nm / 5 - 10 Nm
Planetary gearbox - PLE 40 - MICROSTEP GmbH - coaxial / 10 - 20 Nm / 5 - 10 Nm
Planetary gearbox - PLE 40 - MICROSTEP GmbH - coaxial / 10 - 20 Nm / 5 - 10 Nm - image - 2
Add to favorites
Compare this product

Characteristics

Type
planetary
Shaft orientation
coaxial
Torque
10 - 20 Nm, 5 - 10 Nm
Configuration
compact
Number of stages
single-stage, three-stage
Performance
high-efficiency, high-torque
Rotational speed

Max.: 18,000 rpm
(113,097.3355 rad.min-1)

Min.: 5,000 rpm
(31,415.9265 rad.min-1)

Description

The principle is based on a single planetary gearing which offers a high torque throughput with compact construction design. Features • Coaxial arrangement of the input and output shaft • Input rotation direction = Output rotation direction • High efficiency • Compact construction design • Low sensitivity to impact loading
