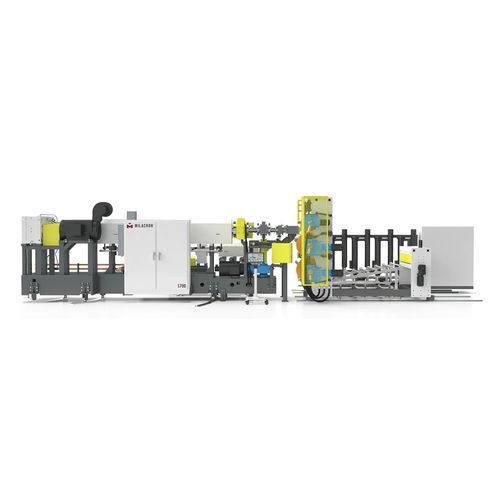

Extrusion line with water cooling SHEET

single layermultilayerwith air cooling

Overview
Discover the efficiency and versatility of Milacron’s SHEET LINE extrusion technology for producing plastic sheets used in packaging, construction and industrial applications. The system is supplied with integrated extrusion components and aftermarket support to facilitate line integration and continuous operation.

Applications
Milacron SHEET LINE supports a range of end-use applications:

• Packaging: lightweight sheets for cups and containers that support product protection and shelf life
• Construction: wall panels and roofing with thermal resistance and structural performance
• Industrial: custom sheets for marine decking, safety barriers, lighting panels and heavy-duty uses

Control & Digital Platforms
Machines are equipped with the MOSAICx control system for precise process regulation. The M-Powered IIoT platform delivers real-time data analytics to help reduce inefficiencies and unplanned downtime.

Features
Roll stack technology supports mono-, co-extrusion and polyside layer structures. Main options and capabilities include:

• Manual, motorized or automated closed-loop gap control
• Customizable roll stack configurations and edge trim management
• Roll surface finishes: mirror, matte or embossed with temperature control
• Custom screw designs, heavy-duty gearboxes and air- or water-cooled barrels
• Downstream modules: winding, shearing, stacking, lamination, anti-static treatment and in-line gauging

Performance
SHEET LINE systems handle sheet widths from 36" to 120" and thicknesses from 0.005" to 0.500". Production capability can reach up to 9,000 pounds per hour depending on configuration and material.

Available In
Regions of availability include Africa, Asia/Pacific, Europe, North America and South America.

Technical specifications

• Product name: SHEET LINE
• Control system: MOSAICx
• IIoT platform: M-Powered
• Roll stack capability: mono, co-extrusion, polyside layer structures
• Gap control options: manual, motorized, automated closed-loop
• Roll surface options: mirror, matte, embossed
• Temperature control for roll surfaces
• Custom screw designs available
• Barrel cooling: air-cooled or water-cooled
• Gearboxes: robust heavy-duty gearboxes
• Sheet width range: 36" to 120"
• Sheet thickness range: 0.005" to 0.500"
• Maximum throughput: up to 9,000 pounds per hour (depending on setup and material)
• Downstream options: winding, shearing, stacking, lamination, anti-static applications, in-line gauging
