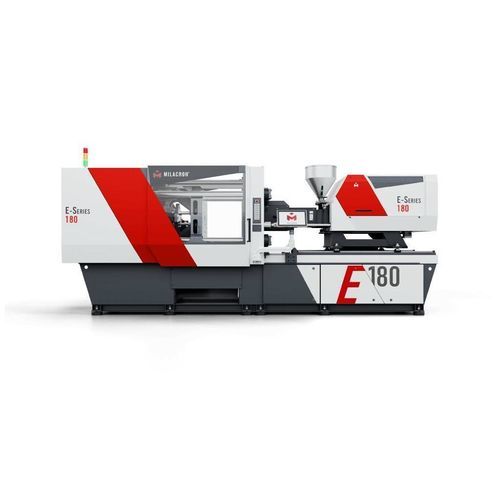

Horizontal injection molding machine E

electricfully-electricmodular

Overview
Compact-format, high-precision all-electric injection molding machine engineered for versatile production. The Milacron E-SERIES (3rd-generation) combines an advanced electric drive with a rigid clamp system to support larger molds, increase injection speed capability and reduce operating costs on the shop floor.

Key Capabilities

• 3rd-generation all-electric architecture for improved energy efficiency and lower operating costs
• Compact frame with increased tie-bar spacing to accommodate larger molds
• Higher achievable injection speeds without hardware modifications
• Advanced electric drive and rigid mechanical design to reduce maintenance needs

Additional information
The E-SERIES uses high-performance ball screws for high load capacity and high-speed operation, and an advanced grease system that minimizes grease dispersion. Integrated process features and controls optimize molding conditions and productivity, including a molding assistant, smart charging, adaptive lubrication and PSSV for weight consistency. Programmable clamp tolerances and responsive motion control help reduce downtime and repair costs.

Features

• Rigid clamp system with increased tie-bar spacing for a wide mold range
• High-performance injection unit enabling higher speeds via reduced injection pressure
• Modular options and built-in process customization to match production requirements
• Advanced control platform: MOSAICxi available (evolution of MOSAIC)
• Process aids: molding assistant, PSSV (weight consistency), adaptive lubrication, smart charging

Availability / Stats

• Available tonnage: 50-650 METRIC
• Available in: Asia/Pacific, Europe

More about Milacron (product context)
Milacron supplies complete plastic processing line solutions and services (parts, service, financing, consulting, digital/IIoT platforms) to support production optimization and equipment lifecycle management.

Specifications / Technical data

• Model family: E-SERIES (3rd-gen all-electric)
• Tonnage range: 50 - 650 metric
• Drive: advanced electric drive
• Injection: high-performance injection unit; higher speeds via reduced injection pressure
• Mechanical: high-rigidity clamp system; increased tie-bar spacing
• Motion components: high-performance ball screws (high load capacity, high-speed operation)
• Maintenance: advanced grease system to minimize grease dispersion
• Control & software: MOSAICxi (available), molding assistant, PSSV for weight consistency, smart charging, adaptive lubrication
• Operational benefits: faster injection speeds without component changes, programmable clamp tolerances, improved energy efficiency, reduced operating and maintenance costs
