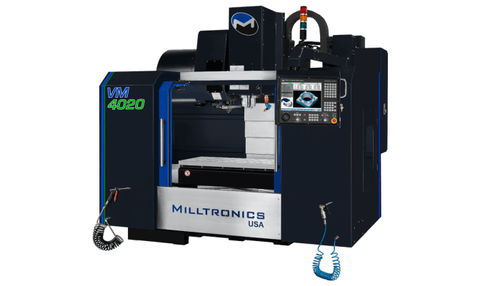

3-axis CNC milling machine VM4020
verticalCAT4020 tools

3-axis CNC milling machine
3-axis CNC milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
CAT40
Number of tool stations
20 tools
X travel

1,016 mm
(40 in)

Y travel

508 mm
(20 in)

Z travel

508 mm
(20 in)

Rotational speed

10,000 rpm
(62,832 rad.min-1)

Power

11 kW, 15 kW
(14.96 hp, 20.39 hp)

Work feed X-axis

24,000 mm/min
(16 in/s)

Work feed Y-axis

24,000 mm/min
(16 in/s)

Work feed Z-axis

24,000 mm/min
(16 in/s)

Table load capacity

1,710 kg
(3,770 lb)

Tool weight (max)

7 kg
(15.4 lb)

Weight

4,125 kg
(9,094.07 lb)

Overall length

3,722 mm
(146.5 in)

Overall width

3,210 mm
(126.4 in)

Overall height

2,565 mm
(101 in)

Description

Our most popular size CNC mill, the Milltronics VM4020 gives you 40″ x 20″ x 20″ travels, a 46″ x 20″ table, a 20 HP spindle motor, 10,000 RPM BIG-PLUS® spindle and much more. Standard Features Milltronics 9000-DGI CNC Heavily ribbed one piece fine grain cast iron casting Fully enclosed machine guard with side doors 30/35 mm linear way technology Precision ground ballscrews supported at both ends Precision ground table surface Telescopic metal way covers 20 pocket double arm ATC Automatic positive displacement lubrication system High torque AC digital servo drives High torque closed loop vector spindle drive system Work light (right side) LCD hour meter Spindle taper blow-out and tool release button Spare “M” function with CNC “wait” channel Programmable on/off flood coolant system Rigid tap Edit key lockout switch Spindle load meter Feedrate and spindle speed overrides Spindle air purge End of cycle light One Year Warranty Add-on Options Coolant through spindle system Part and tool probes Chip auger chip removal system Lift up chip conveyor chip removal system Remote handwheel Auxiliary industrial grade keyboard Electronic spindle chiller Air gun Coolant wash down gun Additional work light (left side) BT style tooling ChipBoss™ Trochoidial Milling Software Milltronics Shop View Digital Setup Assistant
