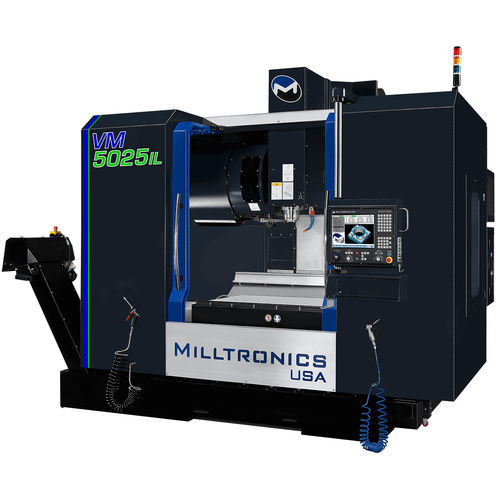

3/4-axis CNC machining center VM5025IL

3/5-axisverticalCAT40

With generous travels of 50″ x 25″ x 24″ and a 54″ x 25″ table, the VM5025IL has a 24 HP dual wound 12,000 RPM BIG-PLUS spindle. Standard Features Heavily ribbed one piece fine grain cast iron casting Fully enclosed machine guard with side doors 35/45 mm roller linear way technology Precision ground ballscrews supported at both ends Precision ground table surface Telescopic metal way covers 30 pocket arm type ATC ISO No. 40 Automatic positive displacement lubrication system High torque AC digital servo drives High torque closed loop vector spindle drive system Dual work lights LCD hour meter Spindle taper blow-out and tool release button Single spare “M” function with CNC “wait” channel Programmable on/off flood coolant system Rigid tap Edit key lockout switch Spindle load meter Feedrate and spindle speed overrides Spindle air purge End of cycle light Chip conveyor chip removal system Remote handwheel Air gun Coolant wash down gun One Year Warranty Add-on Options Coolant through spindle system Work offset probing Auxiliary industrial grade keyboard Electronic spindle chiller BT style tooling Thermal head mapping ChipBossTM Trochoidial Milling Software Milltronics Shop View Digital Setup Assistant Programmable spray-mist and air-blast
