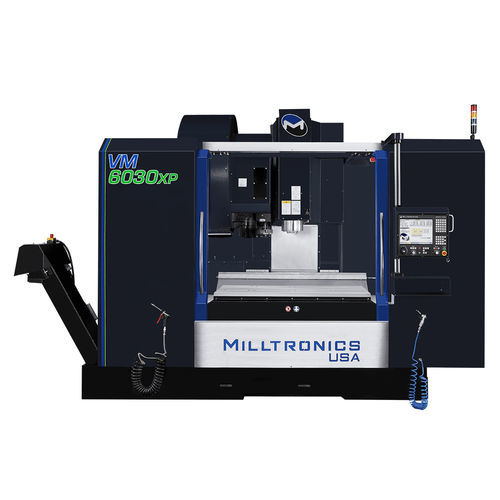

3-axis CNC machining center VM6030XP

verticalCAT5030 tools

Our biggest XP Series machine at 60″ x 30″ x 24″, the VM6030XP has a 66″ x 30″ table and a 35 HP dual wound 8,000 RPM spindle that generates 365 ft-lbs of torque. Standard Features Heavily ribbed one piece fine grain cast iron casting Fully enclosed machine guard with side doors 45 mm roller linear way technology Precision ground ballscrews supported at both ends Precision ground table surface Telescopic metal way covers 30 pocket double arm ATC ISO No. 50 Automatic positive displacement lubrication system High torque AC digital servo drives High torque closed loop vector spindle drive system Dual work lights LCD hour meter Spindle taper blow-out and tool release Spare “M” function with CNC “wait” channel Programmable on/off flood coolant system Rigid tap Edit key lockout switch Spindle load meter Feedrate and spindle speed overrides Spindle air purge End of cycle light Chip conveyor and washdown chip removal system Remote handwheel Air gun Coolant wash down gun One Year Warranty Add-on Options Coolant through spindle system Programmable spray mist coolant Tool and part probes 4th axis options Auxililary industrial grade keyboard Electronic spindle chiller BT style tooling ChipBossTM Trochoidial Milling Software Milltronics Shop View Digital Setup Assistant
