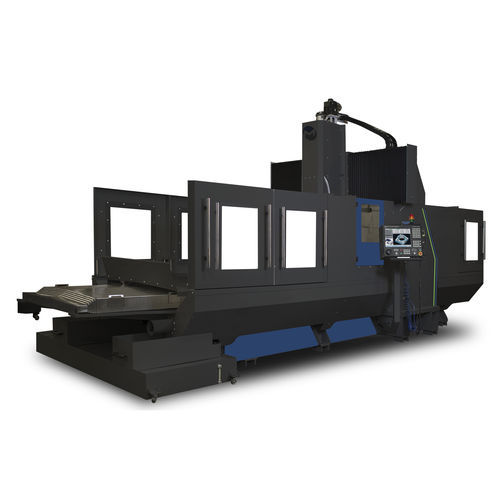

3-axis CNC milling machine BR8100ILverticalCAT4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- CAT40
- Number of tool stations
- 24 tools
- Other characteristics
- high-speed
- X travel
2,540 mm
(100 in)- Y travel
2,030 mm
(80 in)- Z travel
710 mm
(28 in)- Rotational speed
10,000 rpm, 15,000 rpm
(62,832 rad.min-1, 94,248 rad.min-1)- Power
11 kW, 18 kW, 26 kW
(14.96 hp, 24.47 hp, 35.35 hp)- Work feed X-axis
25,400 mm/min
(17 in/s)- Work feed Y-axis
25,400 mm/min
(17 in/s)- Work feed Z-axis
25,400 mm/min
(17 in/s)- Table load capacity
2,270 kg
(5,004 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
8,770 kg
(19,334.54 lb)- Overall length
4,200 mm
(165.4 in)- Overall width
7,126 mm
(280.6 in)- Overall height
3,835 mm
(151 in)
Description
The Milltronics BR8100IL is 100″ x 80″ x 28″ with an 80″ x 100″ table. This high-speed bridge machine features a 24 HP dual wound 10,000 RPM #40 taper BIG-PLUS inline spindle. Available with an optional full enclosure and/or a 24 station tool changer.
Standard Features
Milltronics 9000-DGI CNC
1.73 in (45 mm) linear roller way technology
24/15 HP 2 speed spindle motor
Spindle air purge
X-axis metal way cover construction
12-inch LCD color display
Networking
Automatic lubrication
Tri-color end of cycle light
1,000 IPM rapid traverse rate
Solid model graphic display
LCD hour meter
Single spare “M” function
120 GB program storage memory
One year warranty
Add-on Options
Spindle chiller
Milltronics rotary tables
Tool and part probing
Thermal head mapping
Additional spare “M” functions
Chip management system (enclosure, flood system, lift-up conveyor)
Coolant thru spindle*
40 pocket ATC (BR80 sizes only)
Programmable spray mist and air blast
Digital Setup Assistant
Milltronics Shop View
ChipBossTM Trochoidal Milling Software
Removable doors
