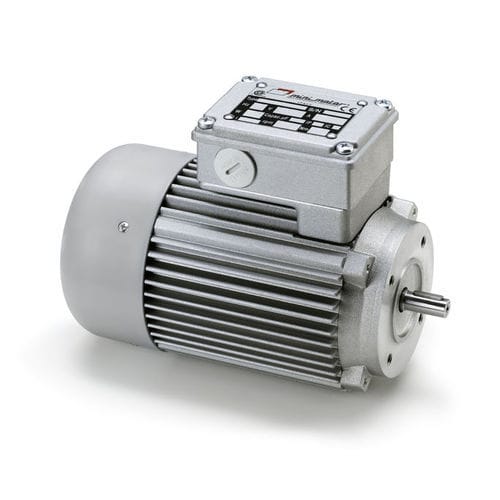

Asynchronous motor AM seriesthree-phase400 V380 V
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Voltage
- 400 V, 380 V
- Configuration
- with built-in electromagnetic brake
- Protection class
- IP65
- Number of poles
- 4-pole, 2-pole
- Other characteristics
- with built-in encoder
- Power
Max.: 270 W
(0.37 hp)Min.: 10 W
(0.01 hp)- Intensity
Max.: 1,400 mA
Min.: 130 mA
- Torque
Max.: 0.96 Nm
(0.70806 ft.lb)Min.: 0.07 Nm
(0.051629 ft.lb)- Rotational speed
1,200 rpm, 1,250 rpm, 2,600 rpm, 2,700 rpm
(7,539.8224 rad.min-1, 7,853.9816 rad.min-1, 16,336.2818 rad.min-1, 16,964.6003 rad.min-1)
Description
Three phase with 2 or 4 poles, totally enclosed with external ventilation. Class F winding. IP65 protection according to CEI EN 60529. Power from 9 to 270 W. Version B5 – B14.
On request: motor equipped with electromagnetic brake supplied at 230 Vac, marked by letter KA (AMKA) or at 24 Vdc, marked by letter KB (AMKB).
