Worm gear-motor BCE2000 series
three-phasesingle-phaseasynchronous

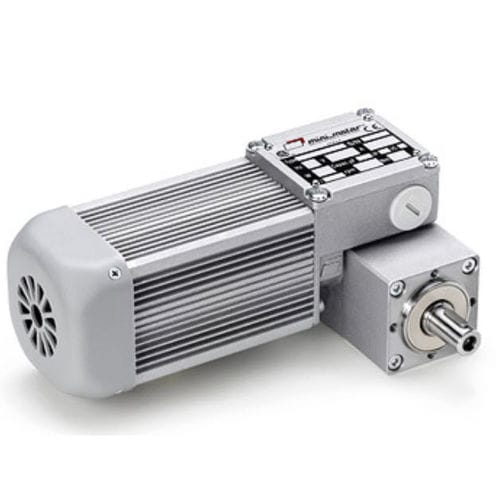

Worm gear-motor - BCE2000 series - Mini Motor SPA - three-phase / single-phase / asynchronous
Worm gear-motor - BCE2000 series - Mini Motor SPA - three-phase / single-phase / asynchronous
Worm gear-motor - BCE2000 series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 2
Worm gear-motor - BCE2000 series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 3
Worm gear-motor - BCE2000 series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 4
Worm gear-motor - BCE2000 series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 5
Worm gear-motor - BCE2000 series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 6
Worm gear-motor - BCE2000 series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 7
Add to favorites
Compare this product
Go to the Mini Motor SPA website for more information

Characteristics

Motor type
three-phase, single-phase, asynchronous
Type
epicyclic, worm
Shaft orientation
right angle
Shaft configuration
solid-shaft
Power
10 W...50 W
Voltage
400 V, 380 V
Torque
10 - 20 Nm
Other characteristics
IP65, aluminum frame
Gear ratio

Max.: 400 unit

Min.: 50 unit

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Rotational speed

2,800 rpm
(17,592.9189 rad.min-1)

Description

WORM GEARED MOTORS PLUS FINAL PLANETARY REDUCTION STAGE. Single-phase and three-phase motors till 20 W. Centre distance 20 mm. MOTOR: asynchronous single and three-phase with 2 poles, totally enclosed with external ventilation. Safety thermal cutout on single phase model. Class F winding. IP65 according to CEI EN 60529. GEAR UNIT: with die-cast aluminium case in fi rst reduction stage, with worm screw and in steel in second planetary reduction stage with three internal planetary gears, ratio i=5. Centre distance 20 mm. CARO bronze ring, 120÷160 HB hardness. Hardened steel screw with ground thread. Fluoridated polymer (FPM) grommets. Lubrication with synthetic oil (EP). 6 reduction gear ratios are available: 50/75/125/225/300/400. Maximum rated torque is 14.4 Nm. Manufacture B3/14.
