Worm gear-motor PC series
three-phasesingle-phaseasynchronous

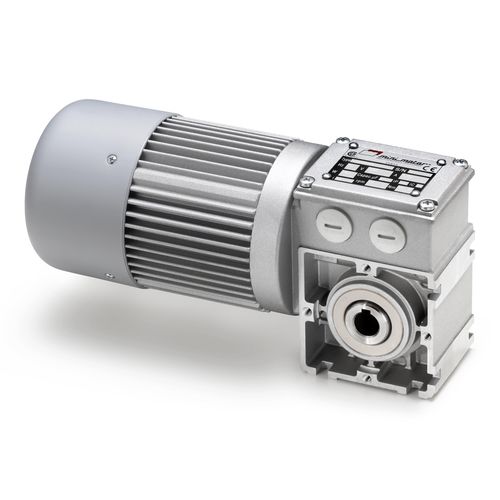

Worm gear-motor - PC series - Mini Motor SPA - three-phase / single-phase / asynchronous
Worm gear-motor - PC series - Mini Motor SPA - three-phase / single-phase / asynchronous
Worm gear-motor - PC series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 2
Worm gear-motor - PC series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 3
Worm gear-motor - PC series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 4
Worm gear-motor - PC series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 5
Worm gear-motor - PC series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 6
Worm gear-motor - PC series - Mini Motor SPA - three-phase / single-phase / asynchronous - image - 7
Add to favorites
Compare this product
Go to the Mini Motor SPA website for more information

Characteristics

Motor type
three-phase, single-phase, asynchronous
Type
worm
Shaft orientation
right angle
Power
100 W...500 W, 10 W...50 W, 50 W...100 W
Voltage
400 V, 380 V
Torque
10 - 20 Nm
Other characteristics
IP65, 4-pole, aluminum frame
Gear ratio

Min.: 5 unit

Max.: 100 unit

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 60 °C
(140 °F)

Rotational speed

1,400 rpm, 2,800 rpm
(8,796.4594 rad.min-1, 17,592.9189 rad.min-1)

Description

MOTOR: asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529. GEAR UNIT: with die-cast aluminium casing. Centre distance 32 mm. CARO bronze ring 120-160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. 10 gear ratios (i) available, from 5 to 100. Rated torque 20 Nm. Version B3 or B5. B5/S left version – B5/D right version.
