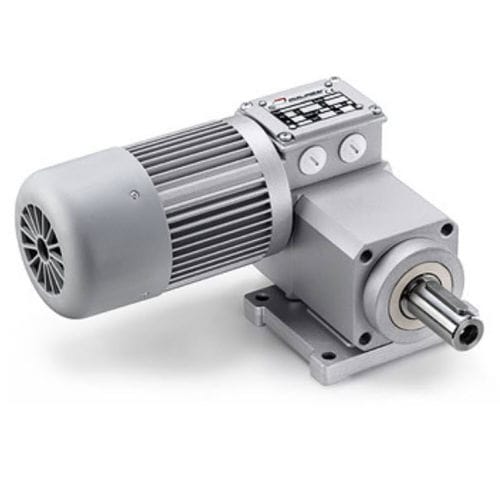

Worm gear-motor PCE seriesthree-phasesingle-phaseasynchronous
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase, single-phase, asynchronous
- Type
- planetary, worm
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W, 10 W...50 W, 50 W...100 W
- Voltage
- 400 V, 380 V
- Torque
- 50 - 100 Nm
- Other characteristics
- IP65, 4-pole, aluminum frame
- Gear ratio
Max.: 475 unit
Min.: 33.25 unit
- Operating temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Rotational speed
1,400 rpm, 2,800 rpm
(8,796.4594 rad.min-1, 17,592.9189 rad.min-1)
Description
Worm geared motors plus final planetary reduction stage. Single-phase and three-phase motors from 44 to 270 W. Centre distance 32 mm.
MOTOR: asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.
GEAR UNIT: with die-cast aluminium casing in the first reduction stage, with worm screw and steel casing in the second planetary stage, with three internal planetary gears.
CARO bronze ring 120-160 HB hardness. Hardened steel screw with ground threads rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 33.25 to 475. Rated torque 90 Nm. Version B3 or B5. B5/S left version – B5/D right version.
Catalogs
Gear Catalogue
106 Pages
Other Mini Motor SPA products
Asynchronous singlephase/ threephase
