Brushless DC servo-gearmotor PCDBS series
wormright anglehollow-shaft

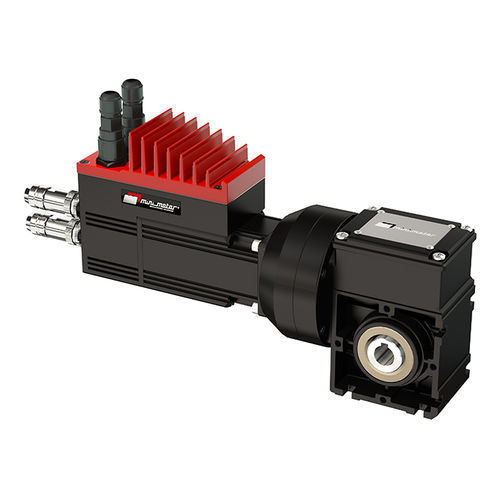

Brushless DC servo-gearmotor - PCDBS series - Mini Motor SPA - worm / right angle / hollow-shaft
Brushless DC servo-gearmotor - PCDBS series - Mini Motor SPA - worm / right angle / hollow-shaft
Add to favorites
Compare this product
Go to the Mini Motor SPA website for more information

Characteristics

Motor type
brushless DC
Type
worm
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Power
100 W...500 W
Voltage
48 V, 24 V
Torque
10 - 20 Nm, 5 - 10 Nm, 1 - 5 Nm
Other characteristics
IP65, with brake, with integrated controller
Gear ratio

Min.: 5 unit

Max.: 100 unit

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 40 °C
(104 °F)

Rotational speed

Min.: 30 rpm
(188.4956 rad.min-1)

Max.: 600 rpm
(3,769.9112 rad.min-1)

Description

BRUSHLESS WORM SERVOGEARMOTOR WITH INTEGRATED DRIVE – 4-pole sinusoidal brushless servomotor – Rotor with NdFeB magnets and reduced clearance bearings – 24/48 Vdc supply voltage – Thermal safety cutout, class F winding – IP65 protection (CEI EN 60529) – Feedback with multi-turn absolute encoder – Gearbox case in die-cast aluminium – CARO bronze ring (120÷160 HB), hardened steel screw with ground thread – Lubrication with long-life oil, sealing rings for high temperatures – Wheelbase 32 mm
