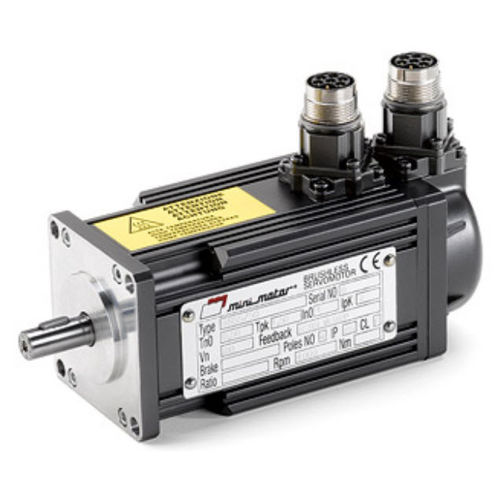

Brushless servomotor BS series
AC380 Vpermanent magnet

Brushless servomotor - BS series - Mini Motor SPA - AC / 380 V / permanent magnet
Brushless servomotor - BS series - Mini Motor SPA - AC / 380 V / permanent magnet
Brushless servomotor - BS series - Mini Motor SPA - AC / 380 V / permanent magnet - image - 2
Brushless servomotor - BS series - Mini Motor SPA - AC / 380 V / permanent magnet - image - 3
Brushless servomotor - BS series - Mini Motor SPA - AC / 380 V / permanent magnet - image - 4
Brushless servomotor - BS series - Mini Motor SPA - AC / 380 V / permanent magnet - image - 5
Brushless servomotor - BS series - Mini Motor SPA - AC / 380 V / permanent magnet - image - 6
Brushless servomotor - BS series - Mini Motor SPA - AC / 380 V / permanent magnet - image - 7
Add to favorites
Compare this product
Go to the Mini Motor SPA website for more information

Characteristics

Type
brushless, AC
Voltage
380 V
Configuration
permanent magnet
Protection class
IP65
Number of poles
4-pole, 2-pole
Power

Max.: 293 W
(0.4 hp)

Min.: 32 W
(0.04 hp)

Torque

Max.: 2.1 Nm
(1.548881 ft.lb)

Min.: 0.075 Nm
(0.055317 ft.lb)

Rotational speed

4,000 rpm
(25,132.7412 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)
