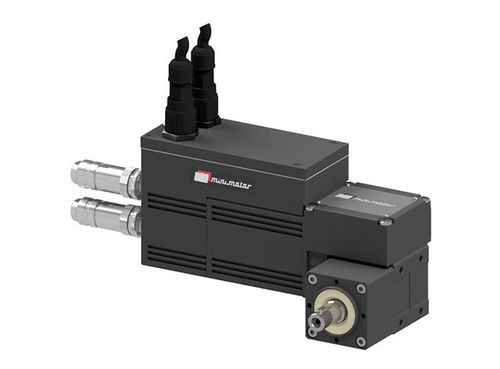

Servomotor servo-gearmotor BCEDBS

brushlessplanetaryworm

Brushless worm servogearmotor with integrated drive and planetary reduction stage. - 4-pole sinusoidal brushless servomotor - Rotor with NdFeB magnets and reduced clearance bearings - 24/48 Vdc supply voltage - Thermal safety cutout, class F winding - IP65 protection (CEI EN 60529) - Feedback with multi-turn absolute encoder - Gearbox first stage case in die-cast aluminium, second stage in steel - CARO bronze ring (120÷160HB), hardened steel screw with ground thread - Lubrication with long-life oil, sealing rings for high temperatures - Wheelbase 20mm Technical Specifications: - Type: Brushless worm servogearmotor - Integrated drive - Planetary reduction stage - Protection class: IP65 - Feedback: Multi-turn absolute encoder - Thermal safety: Class F winding - Supply voltage: 24/48 Vdc - Gearbox: Die-cast aluminium (first stage), steel (second stage) - Lubrication: Long-life oil, high temperature sealing rings - Wheelbase: 20mm
