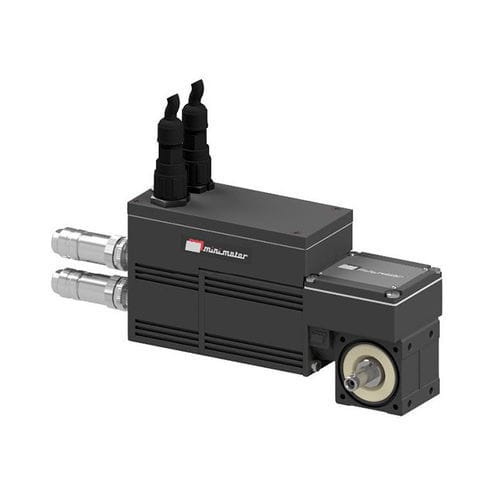

Brushless servo-gearmotor BCDBS

servomotorwormright angle

BRUSHLESS WORM SERVOGEARMOTOR WITH INTEGRATED DRIVE - 4-pole sinusoidal brushless servomotor - Rotor with NdFeB magnets and reduced clearance bearings - 24/48 Vdc supply voltage - Thermal safety cutout, class F winding - IP65 protection (CEI EN 60529) - Feedback with multi-turn absolute encoder - Gearbox case in die-cast aluminium - CARO bronze ring (120÷160 HB), hardened steel screw with ground thread - Lubrication with long-life oil, sealing rings for high temperatures - Wheelbase 20 mm Product family: Brushless - DBS-S1 Line Continuous service Technical Specifications: - Type: Brushless worm servogearmotor with integrated drive - Motor: 4-pole sinusoidal brushless - Rotor: NdFeB magnets, reduced clearance bearings - Supply voltage: 24/48 Vdc - Thermal protection: Safety cutout, class F winding - Protection rating: IP65 (CEI EN 60529) - Feedback: Multi-turn absolute encoder - Gearbox: Die-cast aluminium case - Ring: CARO bronze (120÷160 HB) - Screw: Hardened steel, ground thread - Lubrication: Long-life oil, high temperature sealing rings - Wheelbase: 20 mm
