PVC profile 22.1075/1
groovedguide

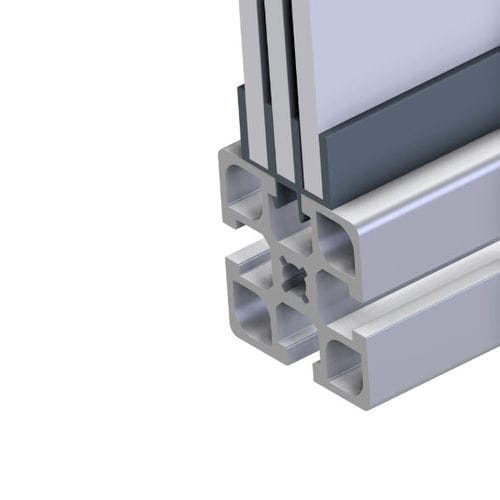

PVC profile - 22.1075/1 - Minitec - grooved / guide
PVC profile - 22.1075/1 - Minitec - grooved / guide
PVC profile - 22.1075/1 - Minitec - grooved / guide - image - 2
PVC profile - 22.1075/1 - Minitec - grooved / guide - image - 3
PVC profile - 22.1075/1 - Minitec - grooved / guide - image - 4
Add to favorites
Compare this product

Characteristics

Material
PVC
Configuration
grooved
Applications
guide
Width

30 mm
(1.181 in)

Height

18 mm
(0.709 in)

Description

Techn. Data / Items supplied PVC, extruded, grey Upon request, also available in black, Art. no. 22.1075/0 weight = 0.340 kg/m bar length = 2 m Applications 3-fold sliding window made of panel elements up to 6 mm thick Assembly Press into profile groove Suitable for subsequent mounting Install round rods for the subsequent mounting of panel elements in the grooves of the lower guide profile Art. no.. 22.1077/0 Determination of dimensions for panel elements for subsequent mounting: Light height- 20 mm, further light height - 10 mm
