Pivot hinge 21.0970/0
aluminiumscrew-in180°

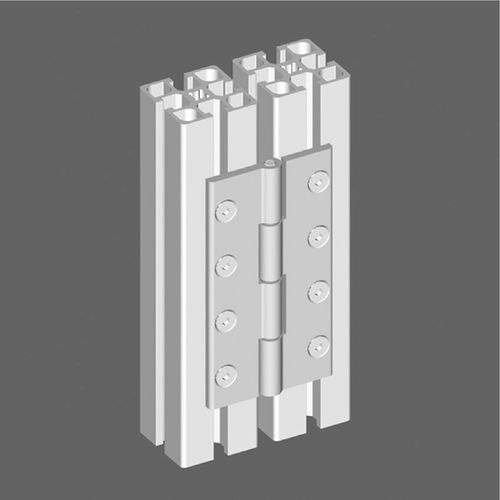

Pivot hinge - 21.0970/0 - Minitec - aluminium / screw-in / 180°
Pivot hinge - 21.0970/0 - Minitec - aluminium / screw-in / 180°
Pivot hinge - 21.0970/0 - Minitec - aluminium / screw-in / 180° - image - 2
Pivot hinge - 21.0970/0 - Minitec - aluminium / screw-in / 180° - image - 3
Pivot hinge - 21.0970/0 - Minitec - aluminium / screw-in / 180° - image - 4
Add to favorites
Compare this product

Characteristics

Type
pivot
Material
aluminium
Installation
screw-in
Opening angle
180°
Applications
door, for profile assembly
Length

132.5 mm
(5.217 in)

Width

72 mm
(2.835 in)

Thickness

12 mm
(0.472 in)

Description

Techn. Data / Items supplied • - aluminium, anodized E6/EV1 • - with stainless steel shaft • - With fastening material steel, zinc plated • - weight = 0.235 kg/piece Applications • - Suitable for large doors and lids • - Guard units • - Connection of profiles at various angles Assembly • - Screw tight to the profile groove with supplied hardware
