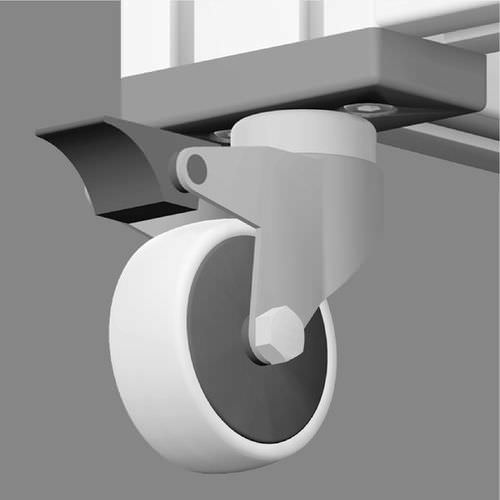

swivel caster / base plate / zinc-coated steel / rubber
21.1120/0

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
swivel caster / base plate / zinc-coated steel / rubber swivel caster / base plate / zinc-coated steel / rubber - 21.1120/0
{{requestButtons}}

Characteristics

  • Type:

    swivel

  • Mount:

    base plate

  • Other characteristics:

    zinc-coated steel, rubber

  • Wheel diameter:

    Min.: 0 mm (0 in)

    Max.: 75 mm (2.953 in)

  • Load capacity:

    Min.: 0 kg (0 lb)

    Max.: 50 kg (110 lb)

Description

Techn. Data / Items supplied

steel, galvanized
Tire, rubber, grey
With fastening material steel, zinc plated
Load capacity 50 kg
Other versions upon request
weight = 0.450 kg/piece
Applications

Movable tables
Work stands
display windows, showcases
Assembly

Attach directly to the central bore of the vertical profile with fastening material,then drill and introduce thread M10
A connection plate is required if the roller is to be positioned centrally with profile cross sections 45 x 90 or 90 x 90
