CNC lathe MNF40
horizontal2-axisflatbed

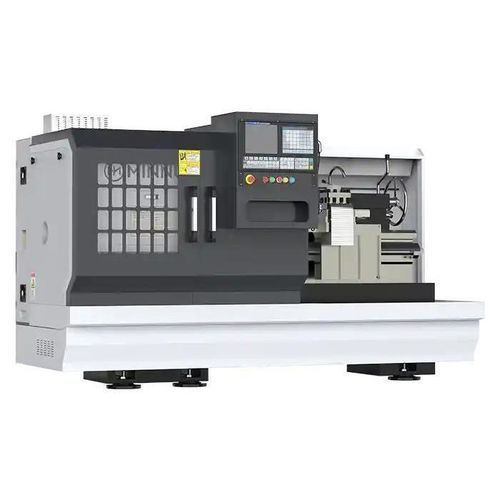

CNC lathe - MNF40 - Minnuo - horizontal / 2-axis / flatbed
CNC lathe - MNF40 - Minnuo - horizontal / 2-axis / flatbed
CNC lathe - MNF40 - Minnuo - horizontal / 2-axis / flatbed - image - 2
CNC lathe - MNF40 - Minnuo - horizontal / 2-axis / flatbed - image - 3
CNC lathe - MNF40 - Minnuo - horizontal / 2-axis / flatbed - image - 4
CNC lathe - MNF40 - Minnuo - horizontal / 2-axis / flatbed - image - 5
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Structure
flatbed
Spindle mount
A2-8, A2-6
Number of tool stations
4 tools
Drive system
servo-driven
Applications
for metal, for automotive applications, for small parts production, for production lines
Performance
high-precision, powerful
Other characteristics
compact, Y-axis, multi-function
Associated function
boring, threading, finishing, drilling
Options and accessories
automated loading/unloading, with gantry robot, with linear motor
Spindle speed

Min.: 150 rpm
(942.478 rad.min-1)

Max.: 2,500 rpm
(15,707.963 rad.min-1)

Part diameter

240 mm
(9 in)

Maximum part length

Min.: 550 mm
(22 in)

Max.: 750 mm
(30 in)

Maximum cutting diameter

400 mm
(16 in)

Maximum cutting length

Min.: 420 mm
(17 in)

Max.: 620 mm
(24 in)

Axe X

280 mm
(11 in)

Axe Z

Min.: 550 mm
(22 in)

Max.: 750 mm
(30 in)

Rapids on X

0 m/s
(0 ft/s)

Rapids on Z

0 m/s
(0 ft/s)

Nominal power

Min.: 5.5 kW
(7.5 hp)

Max.: 7.5 kW
(10.2 hp)

Overall lenght

2,000 mm
(79 in)

Overall width

1,600 mm
(63 in)

Overall height

1,800 mm
(71 in)

Weight

Min.: 1,900 kg
(4,189 lb)

Max.: 2,200 kg
(4,850 lb)

Description

Overview
The MNF40 flat-bed CNC lathe is engineered for precise, space-efficient machining of small to mid-size workpieces. Its integrally cast one-piece bed and hardened guideways provide rigidity and repeatability for turning, threading, drilling and boring operations in production cells, repair shops and toolrooms.

Model details
  • Max work piece length: 550 mm (standard)
  • Max. turning diameter (disc): 400 mm
  • Maximum turning length: 420 mm (standard)
  • Spindle motor power: 5.5 / 7.5 kW


Key Features
  • Reinforced bed design: Integrally cast body with hardened guide rails for long-term positional stability under load.
  • Compact footprint: Designed for small to mid-size parts where floor space is limited.
  • Powerful spindle drive: 5.5/7.5 kW options for finishing and heavier cuts; multiple spindle types available.
  • Multi-function capability: Supports turning, facing, threading, drilling and boring (metric/imperial compatibility).
  • Flexible CNC integration: Compatible with FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi and other controls for easy deployment.
  • Hardened guideways and one-piece bed enhance accuracy and reduce vibration.


Recommended Configurations
  • Spindle: High-precision bearings (SKF/NSK), center-out water spindle or hydraulic spindle options.
  • Drive system: Servo motors standard; optional linear motor drive for higher dynamic performance.
  • Automation: ATC (automatic tool changer), automatic loading/unloading, robotic integration available.
  • Turret: Electric or servo turret; Y-axis turrets available for off-center machining.
  • Cooling: High-pressure or integrated cooling systems.
  • CNC control: Support for major control brands; custom parameterization on request.
  • Measurement & monitoring: Tool breakage detection, Renishaw OMP60 probe, Renishaw TS27R tool setter.
  • Other options: hydraulic/pneumatic chuck, protective covers, chain-type chip conveyor, oil mist collector.


Application Case
  • Client: Precision Parts Workshop – Poland
  • Use case: Batch machining of automotive drive components
  • Setup: Example cell with automatic tool post and chip conveyor
  • Results: Accuracy within ±0.015 mm; cycle time reduced by ~20% vs. manual processes; consistent quality across 500+ parts per batch
  • Client feedback: “Perfectly suited to our shop floor needs—compact, reliable and efficient.”


Product Specifications (MNF40 - selected values)
  • Max. swing dia. over bed: 400 mm
  • Max. swing dia. over slide: 240 mm
  • Maximum turning diameter (disc): 400 mm
  • Max. work piece length: 550 / 750 mm (options)
  • Maximum turning length: 420 / 620 mm (variants)
  • Spindle nose: A2-6 / A2-8
  • Spindle bore: 48 / 82 mm
  • Spindle speed: 150–2500 / 150–1800 r/min (range options)
  • Spindle type: Infinitely adjustable speed
  • Spindle motor power: 5.5 / 7.5 kW
  • Chuck type & size: manual chucks, 200 / 250 mm
  • X axis rapid traverse: 6 m/min; Z axis rapid traverse: 8 m/min
  • X axis travel: 280 mm; Z axis travel: 550 / 750 mm
  • Guide way type: hardened guide rails (hardtrack)
  • Tool post capacity: 4 tools; tool shank: 20×20 mm
  • Tailstock: MT4 taper, quill dia 60 mm, travel 100 mm
  • Net weight: ~1900–2200 kg (depending on configuration)
  • Machine dimensions (L×W×H): 2000/2200 × 1600 × 1800 mm


Technical specifications
  • Model: MNF40
  • Type: Flat-bed CNC lathe for mid-size workpieces
  • Spindle motor power: 5.5 / 7.5 kW
  • Spindle speed range: up to 2500 r/min (model-dependent)
  • Rapid traverse: X 6 m/min, Z 8 m/min
  • Tool post capacity: 4 tools; tool shank 20×20 mm
  • Tailstock taper: MT4; quill dia 60 mm; travel 100 mm
  • Guideways: hardened guide rails (hardtrack)
  • Net weight & footprint: ~1900–2200 kg; 2000/2200 × 1600 × 1800 mm
