Conventional lathe C series

horizontalflatbedbelt drive

Overview

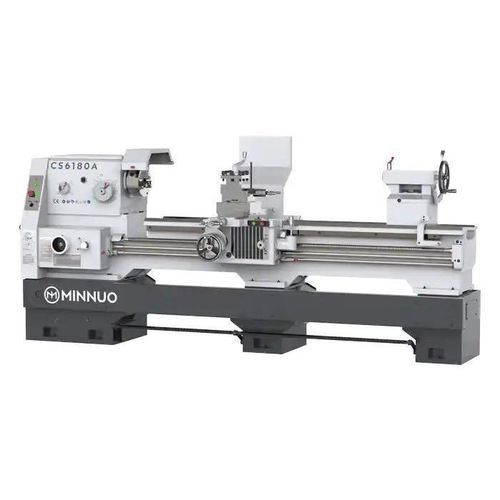

The C6132/C6160 is a versatile manual lathe suitable for turning shafts, flanges and cylindrical parts. It handles workpiece diameters from 320 mm to 600 mm, provides reliable performance and user-friendly mechanical controls for general machining, workshop repair and light manufacturing.

Key Features

• Flexible Size Range: C6132 max turning Ø320 mm; C6160 max turning Ø600 mm.
• Large Swing over Saddle: up to Ø800 mm — ideal for short, wide-diameter parts and complex contours.
• 52 mm Spindle Bore: supports moderate-diameter hollow shafts and bar materials.
• Easy-to-Use Mechanical Layout: traditional manual controls and gearbox feed for low learning curve and high usability.
• Robust Bed and Guideways: long-lasting precision and vibration resistance during tougher cuts.

Recommended Configurations

• Spindle: High-precision spindle options (e.g., SKF, NSK).
• Chuck: Three-jaw chuck with chuck protection device; optional manual four-jaw independent chuck.
• Drive System: belt drive or motor drive options.
• Turret: single turret with square tool post.
• Cooling System: conventional or built-in cooling system.
• Support: steady support, follow rest available.
• Other Options: center rest, protective cover design, manual tailstock, work light.

Application Case

• Client: Equipment repair center (Eastern Europe).
• Machine in case study: C6160 with 3-jaw chuck and steady rest.
• Use case: shaft repair, sleeve boring, pipe-end threading.
• Performance notes: achieved concentricity within ±0.03 mm; easy operation with minimal training; durable under continuous two-shift operation; gearbox changes smooth and consistent threading.

Product Specifications (summary)
Parameters | C6132 / C6232 | C6136 | C6140 | C6160
Machining capacity - Maximum workpiece diameter on the bed | 320 mm | 360 mm | 400 mm | 600 mm
Max. rotary diameter of drag plate | 200 mm | 200 mm | 230 mm | 440 mm
Max. turning diameter at saddle | 590 mm | 590 mm | 630 mm | 800 mm
Center distance (available lengths) | 750 / 1000 / 1500 / 2000 mm (varies by model) | 750 / 1000 mm | 750 / 1000 mm | 750 / 1000 / 1500 / 2000 mm
Spindle bore diameter | 52 mm | 52 mm | 52 mm | 52 mm
Spindle end size | SO-C6 | SO-C6 | SO-C6 | ISO-C6
Spindle taper bore | MT6 | MT6 | MT6 | MT6
Spindle speed range (stages) | 36–1600 rpm (9 steps) | 36–1600 rpm (9 steps) | 36–1600 rpm (9 steps) | 36–1600 rpm (12 steps)
Feed - Metric thread range | 0.5–14 mm (18 types) | 0.5–14 mm (18 types) | 0.5–14 mm (18 types) | 0.5–14 mm (18 types)
Feed - Inch thread range | 2–40 / inch (28 types) | 2–40 / inch (28 types) | 2–40 / inch (28 types) | 2–40 / inch (28 types)
Feed - Modular thread range | 0.25–3.5 mπ (17 types) | 0.25–3.5 mπ (17 types) | 0.25–3.5 mπ (17 types) | 0.25–3.5 mπ (17 types)
Stroke of small tool holder | 150 mm | 150 mm | 150 mm | 150 mm
Cross slide travel | 180 mm | 180 mm | 180 mm | 180 mm
Toolpost cross-section | 20 × 20 mm² | 20 × 20 mm² | 20 × 20 mm² | 22 × 22 mm²
Tailstock sleeve diameter | 75 mm (all models)
Tailstock sleeve taper | MT5 (all models)
Tailstock sleeve travel | 160 mm (all models)
Main motor power | 4 kW (C6132), 4/5.5 kW (C6136), 4 kW (C6140), 7.5 kW (C6160)
Machine overall dimensions (examples by center distance) | For 750 mm: 2100 × 1150 × 1550 mm (typical); for 1000 mm: 2350 × 1150 × 1550 mm / 2350 × 1150 × 1750 mm (model-dependent); for 1500 mm and 2000 mm larger lengths increase accordingly.
Weight (approx.) | C6132: 1300–1800 kg; C6136: 1500–1600 kg; C6140: 1500–1600 kg; C6160: 1800–2300 kg

Caractéristiques / Spécifications techniques

• Workpiece capacity range: Ø320–Ø600 mm depending on model.
• Saddle swing range: Ø590–Ø800 mm depending on model.
• Spindle bore: 52 mm.
• Spindle taper: MT6; spindle end: SO-C6 / ISO-C6 depending on model.
• Speed range: up to 1600 rpm (staged gearbox; number of steps depends on model).
• Thread capability: metric, inch and modular ranges included (multiple selectable types).
• Toolpost: square tool post, typical cross-section 20×20 mm² (22×22 mm² on larger model).
• Tailstock: MT5 taper, 75 mm sleeve diameter, 160 mm travel.
• Main motor options: from 4 kW up to 7.5 kW depending on model.
• Typical machine footprints and weights vary by center distance and model (see specification table above).
