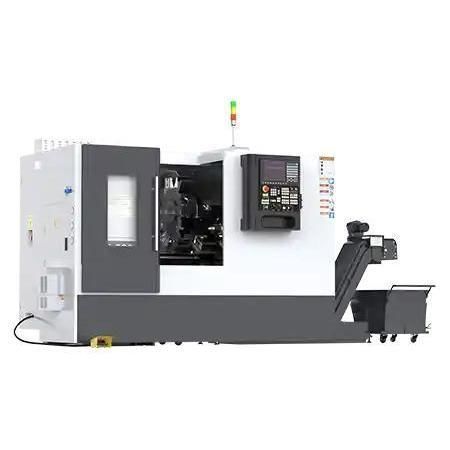

CNC lathe MN500L

horizontal2-axisslant bed

Overview
The MN500L is a compact slant-bed CNC lathe optimized for precision machining of bar and disc parts. It supports a maximum bar capacity of Ø50 mm, a maximum turning diameter of Ø320 mm and travels of X: 200 mm / Z: 580 mm, offering accurate, repeatable production in a small footprint.

Model details

• X axis travel: 200 mm
• Z axis travel: 580 mm
• Max. bar capacity: 50 mm
• Max. processing diameter (plate): 320 mm

Key Features

• Bar machining up to Ø50 mm: Suitable for automated production of shafts, bushings, bolts, fasteners and hydraulic fittings.
• Max turning diameter Ø320 mm: Enables face work and disc-type part processing without machine changeover.
• Compact axis travels X = 200 mm / Z = 580 mm: Precise movement and fast response for small- to medium-sized parts.
• High-rigidity structure: One-piece slant bed with heavy ribbing for vibration damping and thermal stability.
• Automation ready: Compatible with bar feeders, part catchers and robotic loading systems.

Recommended Configurations

• Spindle configuration: High-speed electric spindle, dual-spindle option, Y-axis driven tools (optional)
• Tooling system: Servo tool turret, tool compensation
• Clamping system: Hydraulic, pneumatic, mechanical or magnetic chucks
• Feed & drive: Linear drives, ball screws, servo motors
• Cooling & lubrication: Internal/external and high-pressure cooling options
• Control compatibility: FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.
• Other options: Robot arm, Renishaw probe, chain-type chip conveyor, oil mist collector

Application Case

• Client: European automotive connector factory
• Workpiece: Ø48 mm × 60 mm carbon steel connector shell
• Setup: MN500L with bar feeder, 12-station turret and FANUC control (example)
• Results: Fully automated bar-fed production; concentricity within ±0.005 mm; surface roughness Ra ≤ 1.0 µm on turned face

Product Specifications (table view)

• Model: 235LANCEN
• Max. swing dia. over bed: 460 mm
• Max. swing dia. over side: 260 mm
• Max. work piece length: 550 mm
• Max. bar capacity: 50 mm
• Max. processing diameter (plate): 320 mm
• Spindle nose: A2-6 (GB59001)
• Spindle bore: 65 mm
• Spindle speed: 4,000 r/min
• Spindle shift mode: stepless speed control
• Spindle motor power: 15 kW
• Chuck type: Hydraulic chuck (8")
• X-axis rapid traverse: 30 m/min
• Z-axis rapid traverse: 36 m/min
• X/Z servo motor torque: 12 N·m
• Guide way type: Rails
• Turret type: Horizontal 12 stations
• Tool shank size: 25 × 25 mm
• Tailstock: Hydraulic quill dia 65 mm, travel 80 mm, taper MT4
• Total rated power: 20 kW
• Net weight: 2600 kg
• Machine dimensions (L×W×H): 3700 × 1750 × 1750 mm

Technical specifications

• Model: MN500L
• Machine type: Slant-bed / angular CNC lathe
• Bar capacity: Ø50 mm
• Max turning diameter (plate): Ø320 mm
• X-axis travel: 200 mm
• Z-axis travel: 580 mm
• Spindle max speed: 4,000 rpm
• Spindle motor power: 15 kW
• Total rated power: 20 kW
• Chuck: 8" hydraulic chuck
• Turret: Horizontal 12 stations
• Tool shank: 25 × 25 mm
• Tailstock: Hydraulic, quill dia 65 mm, travel 80 mm, taper MT4
• Rapid traverse: X 30 m/min, Z 36 m/min
• Spindle bore: 65 mm
• Guide way: Rails
• Approx. net weight: 2600 kg
• Footprint (L×W×H): 3700 × 1750 × 1750 mm
