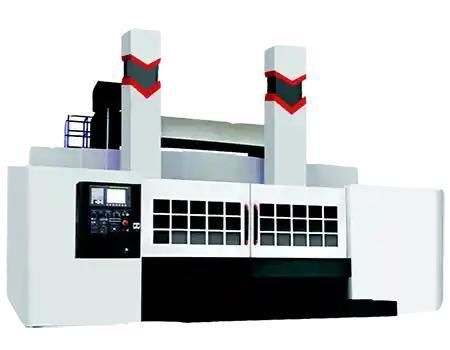

CNC milling-turning center VSL

verticaldouble-columnwith gantry robot

Overview
The VSL CNC double-column vertical turn-mill machining center integrates turning, milling, boring, drilling, tapping, reaming and grinding in a single setup for large and complex workpieces. Designed for industries such as aerospace, automotive, shipbuilding, energy and mould making, the machine emphasizes rigidity and load capacity via its double-column structure and supports long-duration production runs with precision electric spindles and advanced CNC control.

Key Features

• Multi-process machining: Turning, milling, boring, drilling, tapping, reaming and grinding in one setup to reduce handling and setup time.
• High-precision worktable/spindle bearings: Double-row cylindrical roller bearings for radial support and large thrust bearings for axial guidance, ensuring stable, accurate rotation.
• C-axis indexing: Eliminates gear transmission backlash with C-axis positioning accuracy of ±0.001° for high-precision operations.
• Electric spindle milling head: High-torque, low-noise spindles with water cooling to maintain thermal stability during extended cycles.
• Advanced CNC control: Siemens 840DSl (example) for precise interpolation and integration with automatic tool magazines.

Recommended Configurations

• Spindle options: High-speed electric spindle, optional dual-spindle layout, Y-axis driven tool turret.
• Tooling: Servo tool turret with tool compensation and automatic tool magazine options.
• Clamping: Hydraulic, pneumatic, mechanical or magnetic clamping systems.
• Feed & drive: Linear drives, ball screws and servo motors.
• Cooling & lubrication: Internal, external and high-pressure cooling systems available.
• Control systems: Supports FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi and other high-performance CNC platforms.
• Other options: Robot integration, Renishaw probes (OMP60 workpiece probe, TS27R tool probe), chain-type chip conveyor, oil mist collector.

Application Case

• Client: Heavy equipment manufacturer — Germany.
• Use case: Machining of large, complex components such as turbine housings and engine blocks.
• Setup: VSL configured with automatic tool magazine, angle milling head and hydraulic station.
• Results: Achieved tight tolerances (reported ±0.005 mm on large parts), ~25% reduction in machining time through multi-process capability and automated tooling, improved surface finish and reduced tool wear from optimized cooling and stable spindle performance.
• Client feedback: The VSL machining center has significantly improved our ability to process large, complex components, increasing efficiency and product quality.

Performance & Operation

• Engineered for heavy-duty, large workpieces with high rigidity from the double-column structure.
• Electric spindle design with water cooling for temperature stability during long cycles.
• Advanced CNC interface for intuitive operation; operators achieve proficiency with appropriate training.
• Customizable parameters: spindle speed, motor power, machining stroke and other specifications.

Technical specifications

• Maximum turning diameter (product detail): φ6300 mm.
• Maximum swivel/turn diameter (product detail): φ6300 mm.
• Maximum workpiece height (product detail): 4000 mm.
• FAQ / reported machining capacity: processing diameter up to 6000 mm; maximum workpiece height 2500 mm; handling of workpieces up to 30 tons (values may vary between FAQ and product-detail pages).
• C-axis positioning accuracy: ±0.001° (indexing function).
• Control system example: Siemens 840DSl.
• Spindle characteristics: high-torque electric spindle(s), water-cooled for thermal stability, low noise.
• Recommended tooling & clamping: servo tool turret, hydraulic/pneumatic/mechanical/magnetic clamps.
